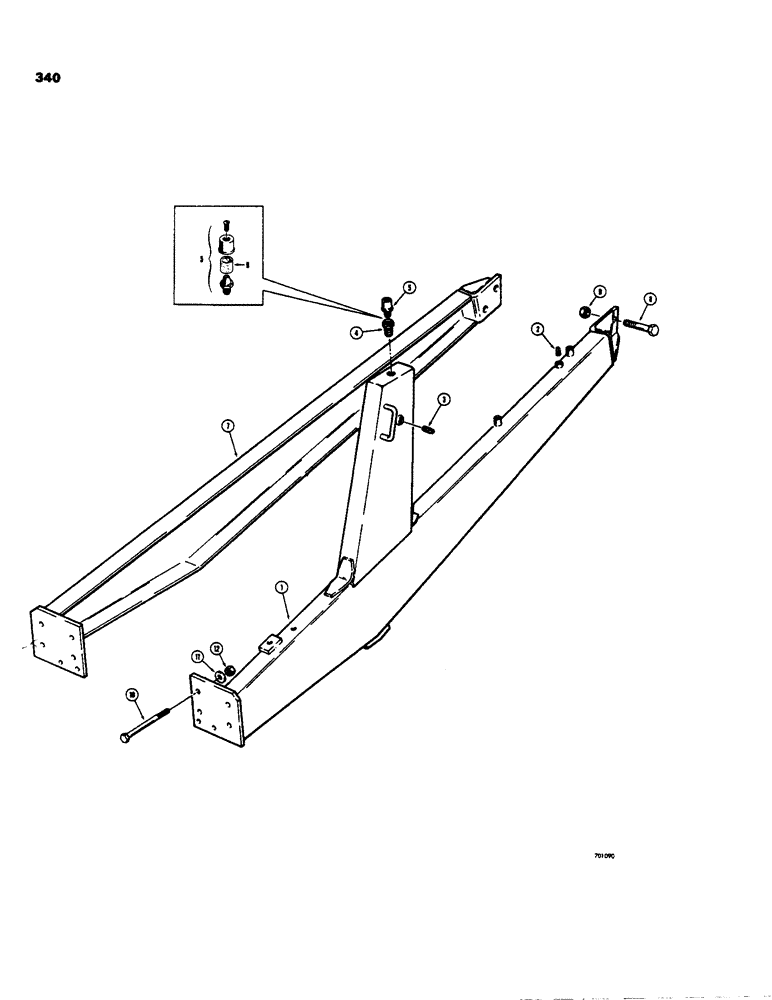

Запчасти Case 35 (340) - SUBFRAME AND RELATED PARTS, USED ON NONLOADER MODELS ONLY EARLY PRODUCTION

1

D55582

SUBFRAME - mounting, RH

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head, 1/4" NPT

1шт.

3

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head, 3/8" NPT

1шт.

4

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducing, 1" NPT x 1/4' NPT

1шт.

5

31543

BREATHER

- hydraulic reservoir, Includes: Ref. 6

1шт.

6

T14011

ELEMENT

- breather

1шт.

7

D52425

SUBFRAME - mounting, LH

1шт.

8

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

9

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4" -10 NC

4шт.

10

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

- hex, 5/8" -11 NC x 8"

8шт.

11

A28084

WASHER

- special

9шт.

12

129-563

NUT,5/8"-11, G8

- hex, lock, 5/8" - 11 NC

8шт.
