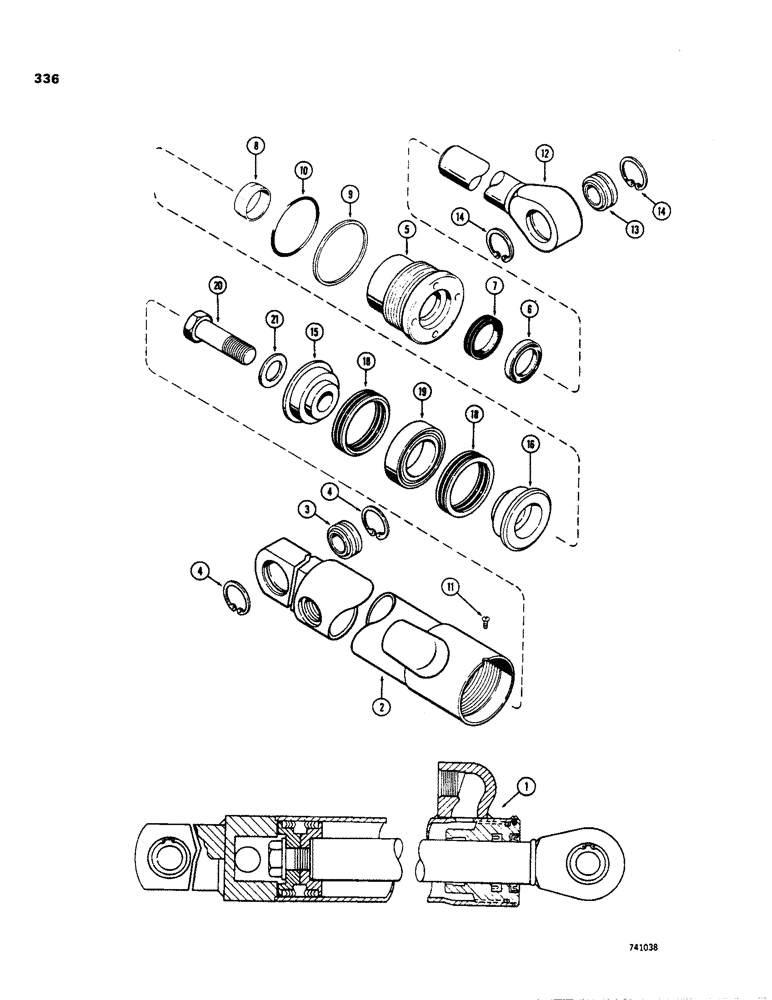

Запчасти Case 35 (336) - G32265 3-POINT HITCH PITCH CYLINDER, WITH TWO PIECE PISTON

1

G32265

CYLINDER

ASSEMBLY - pitch, 2-1/2" (64 mm) ID x 2-7/8 (73 mm) stroke, order G33128, Includes: Ref. 2 - 21

1шт.

2

G32322

TUBE ASSEMBLY - cylinder body, Includes: Ref. 3 and 4 2.497" ID x 15.20" L

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- tube, self-aligning

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

1шт.

5

G32732

GLAND

ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

Part of seal kit P/N G100775

1шт.

8

D27705

WIPER

- piston rod, inner

1шт.

Gland has identification ring.

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G32630

SEAL

ROD ASSEMBLY - piston, 1-1/4" (32 mm) diameter

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- piston rod, self-aligning

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

15

NLS

NO LONGER SERVICED

- split, rod end

1шт.

16

D28364

PISTON

- split, bolt end

1шт.

17

RESERVED

1шт.

18

G33193

PACKING

ASSEMBLY - piston, Includes: Ref. 18 and 19

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32295

GASKET KIT

KIT - seal, Includes Refs. 6, 7, 9, 10 and G33193

1шт.

Gland has identification ring.

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
