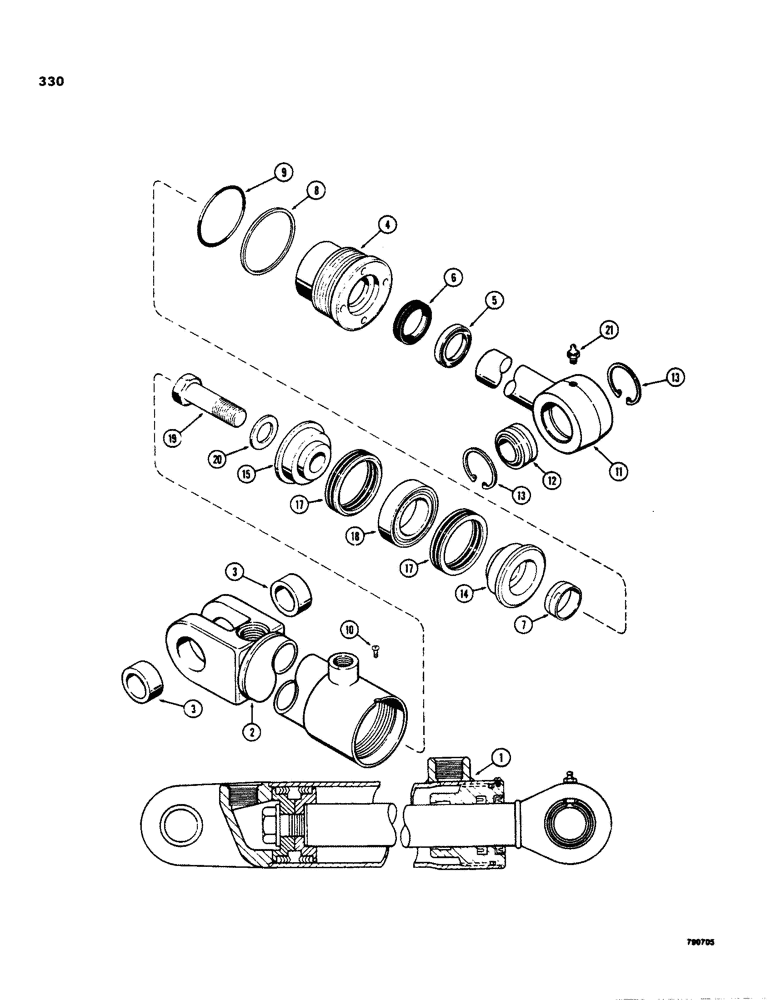

Запчасти Case 35 (330) - G32264 3-POINT HITCH TILT CYLINDER, WITH TWO PIECE PISTON

1

G32264

CYLINDER ASSY.

CYLINDER ASSEMBLY - tilt, 2-1/2" (64 mm) ID x 6-5/16" (160 mm) stroke, order G101188, Includes: Ref. 2 - 6

1шт.

2

G32313

TUBE,14.43" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

- tube

2шт.

4

G32732

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

Part of seal kit P/N G100775

1шт.

7

D27705

WIPER

- piston rod, inner, Includes: Ref. 8 and 9

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G32311

ROD

ASSEMBLY - piston, 1-1/4" (32 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod, self-aligning

1шт.

13

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

14

D28362

SCREW

- split, rod end

1шт.

15

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

ASSEMBLY - piston, not shown assembled, Includes: Ref. 17 and 18

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

Part of seal kit P/N G32295

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G32295

GASKET KIT

KIT - seal, Includes Refs. 5, 6, 8, 9 and 16

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

G100775

SEAL

- piston rod, service option severe heat or cold

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.
