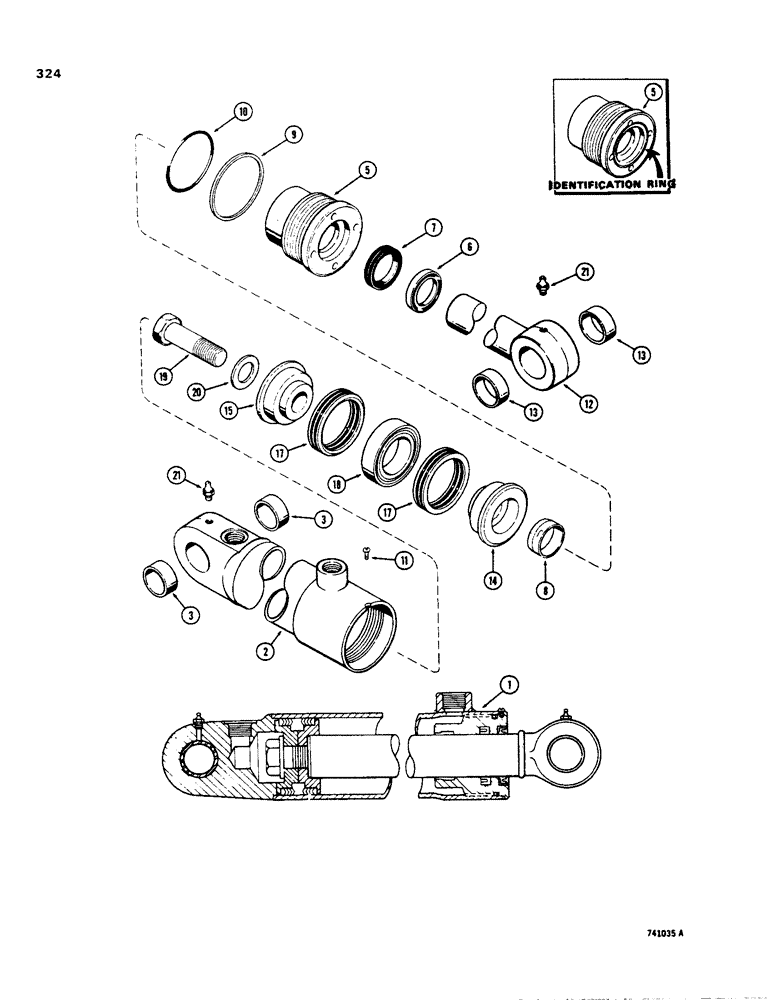

Запчасти Case 35 (324) - G33456 3-POINT HITCH LIFT CYLINDER, WITH TWO PIECE PISTON

1

G33456

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, 3" (76 mm) ID x 8-3/8" (213 mm) stroke, order G101189, Includes: Ref. 2 - 21

1шт.

2

G32330

TUBE,16.59" L

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

RESERVED

1шт.

G33485

GLAND

ASSEMBLY - cylinder, order G34328, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34332

1шт.

Part of seal kit P/N G100776

1шт.

Gland has identification ring.

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33457

PISTON ROD

ROD ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

G33150

PISTON

- split, rod end

1шт.

15

D28366

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 17 and 18

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NC x 2-1/2", grade 8

1шт.

Part of seal kit P/N G34332

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34332

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 16 and 19

1шт.

Gland has identification ring.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
