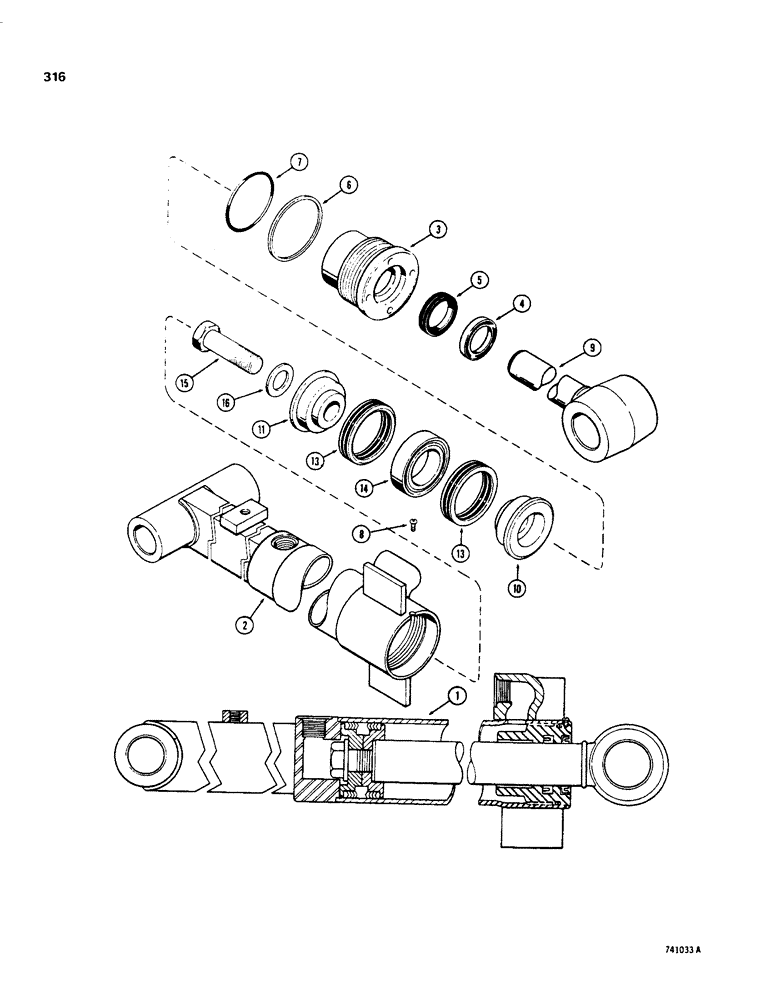

Запчасти Case 35 (316) - G33142 BACKHOE DIPPER EXTENSION CYLINDER

1

G33142

BOOM

CYLINDER ASSEMBLY - dipper extension, 3" (76 mm) ID x 48" (1219 mm) stroke, order G101183, Includes: Ref. 2 - 16

1шт.

2

G32699

TUBE,72.80 mm L

- cylinder body

1шт.

G33189

GLAND

ASSEMBLY - cylinder, order G34328, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Gland has identification ring.

1шт.

5

D36969

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G100776

1шт.

Gland has identification ring.

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Gland has identification ring.

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Gland has identification ring.

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

9

G33143

PISTON ROD

ROD - piston, 1-1/2" (38 mm) diameter

1шт.

10

G33150

PISTON

- split, rod end

1шт.

11

D28366

PISTON

- split, bolt end

1шт.

12

RESERVED

1шт.

G33151

PACKING

Includes: Ref. 13 and 14

1шт.

Gland has identification ring.

1шт.

13

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

14

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G34332

SEAL

KIT - seal, includes Refs. 4 - 7 and G33151

1шт.

Gland has identification ring.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
