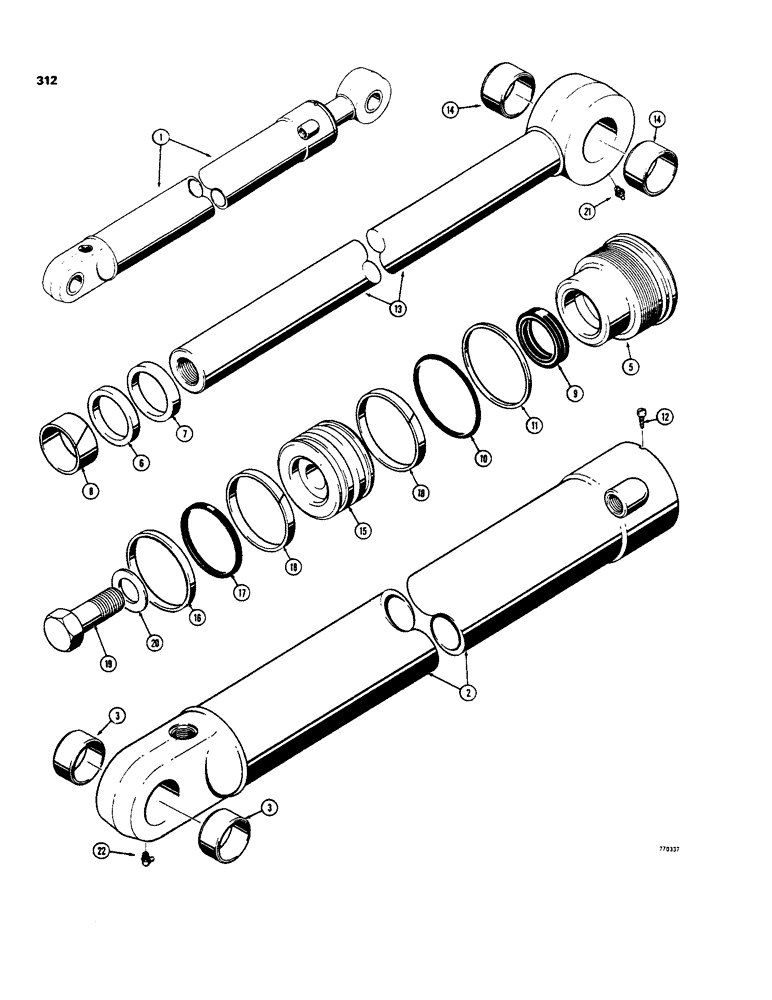

Запчасти Case 35 (312) - G101176 BACKHOE BUCKET CYLINDER, WITH ONE PIECE PISTON

1

G101176

CYLINDER

ASSEMBLY - bucket , 3-1/2" (89 mm ) ID x 30-1/2" (775mm) stroke, see footnote, Includes: Ref. 2 - 16

1шт.

2

G32399

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

RESERVED

1шт.

G34629

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

8

G34322

BEARING

- center

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100778

1шт.

Part of seal kit P/N G102402

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G33162

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

G100694

PISTON

- cylinder

1шт.

16

G108826

SEAL - piston

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, Includes: Ref. 18 - 22

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102402

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G102402

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11. 16, 17 and 18

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
