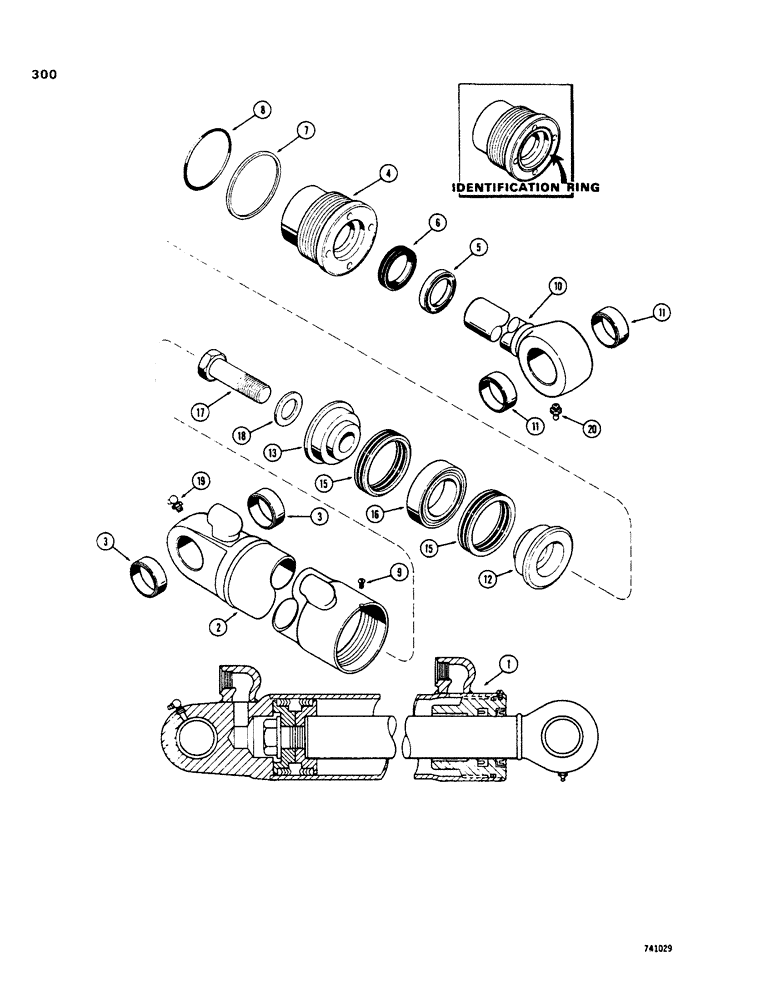

Запчасти Case 35 (300) - G32079 BACKHOE DIPPER CYLINDER, WITH TWO PIECE PISTON

1

G32079

CYLINDER

ASSEMBLY - dipper, 4" (102 mm) ID x 35-1/8" (892 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G32831

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G33190

GLAND

ASSEMBLY - cylinder, order G34331, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Gland has identification ring.

1шт.

6

D36971

RING

SEAL - piston rod

1шт.

Part of seal kit P/N G100778

1шт.

Gland has identification ring.

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Gland has identification ring.

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Gland has identification ring.

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G33154

ROD

ASSEMBLY - iston, 2" (51 mm) diameter, Includes: Ref. 11

1шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

12

G33159

PISTON

- split, rod end

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

RESERVED

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, V-type

2шт.

Gland has identification ring.

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 5, 6, 7, 8 and 15 replaces G32615

1шт.

Gland has identification ring.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold.

1шт.

Gland has identification ring.

1шт.
