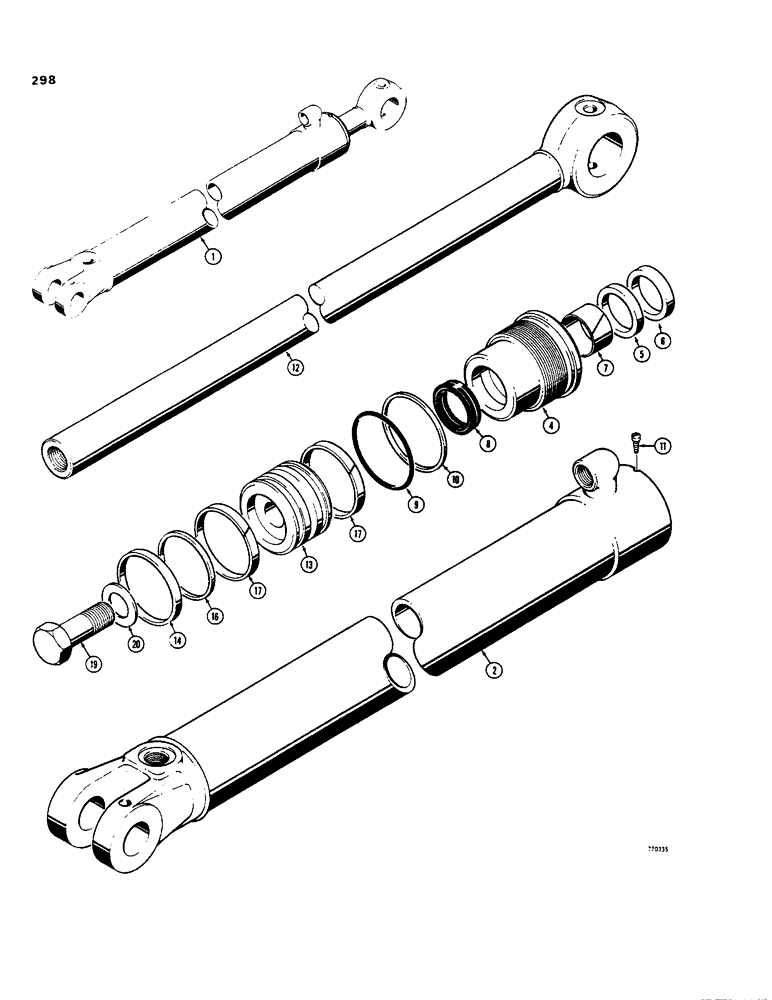

Запчасти Case 35 (298) - G101177 BACKHOE BOOM CYLINDER, WITH ONE PIECE PISTON

1

G101177

BOOM

CYLINDER ASSEMBLY - boom, 3-1/4" (83 mm) Id x 42.1 (1069 mm) stroke see footnote, Includes: Ref. 2 - 20

1шт.

2

G33882

TUBE

- cylinder

1шт.

3

RESERVED

1шт.

G34649

GLAND

ASSEMBLY - cylinder, order G102875, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS-

RING - retaining

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

8

D36970

CUP

SEAL - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100777

1шт.

Part of seal kit P/N G102403

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 -32 NC x 1/4"

1шт.

12

G33885

ROD

- piston

1шт.

13

G100642

PISTON

- cylinder

1шт.

14

S109443

SEAL,78.9mm ID x 83.5mm OD x 6.8mm Thk

- piston

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

15

RESERVED

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

17

S109445

RING,82.55mm OD, Ext

- wear

2шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102403

1шт.

18

RESERVED

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G102403

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 14, 16 and 17

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
