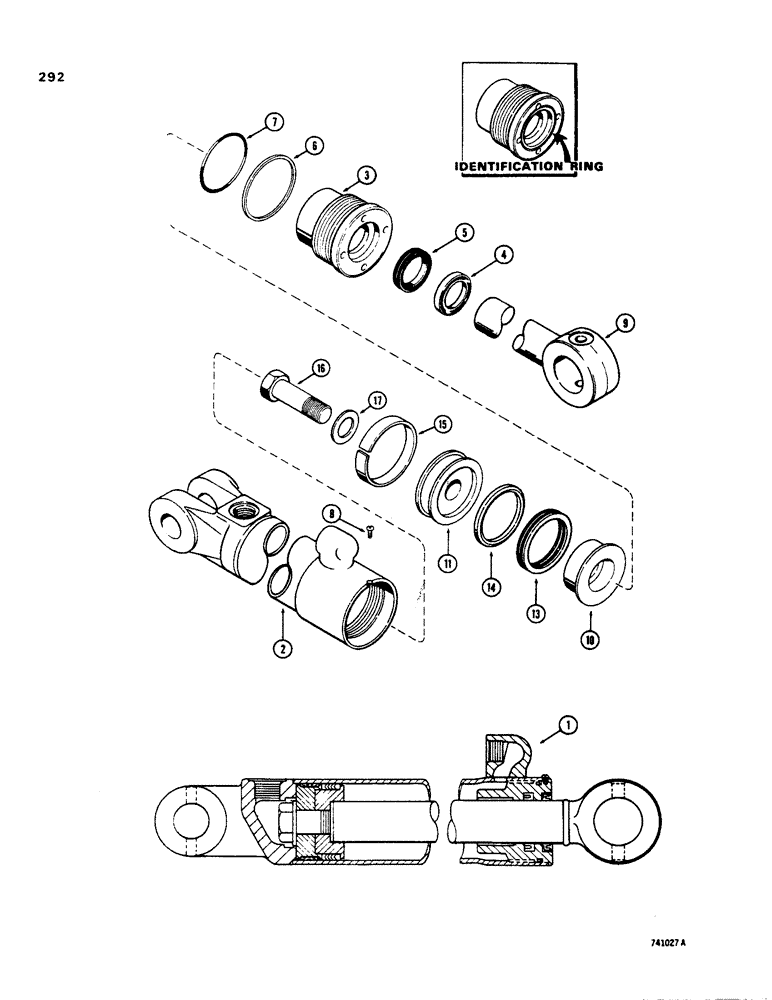

Запчасти Case 35 (292) - G33066 BACKHOE BOOM CYLINDER, WITH TWO PIECE PISTON
№
Артикул
Название
Примечание
Количество
1
G33066
CYLINDER
ASSEMBLY - boom, 3-1/4" (83 mm) ID x 42-1/8" (1070 mm) stroke, Includes: Ref. 2 - 17
1шт.
1
G106168R
REMAN-HYD CYLINDER
35 LOADER AND BACKHOE FOR 580CK SERIES B, ASSEMBLY, boom, Reman for New PN G33066
1шт.
1
G106168C
CORE-HYD CYLINDER
Return Number
1шт.
2
G33067
TUBE,51.49" L
- cylinder
1шт.
G33192
GLAND
ASSEMBLY - cylinder, order G102878, Includes: Ref. 3 - 7
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
4
D954143
WIPER - piston rod, outer
1шт.
Gland has identification ring.
1шт.
Part of seal kit P/N G34653
1шт.
5
D36970
CUP
SEAl - piston rod
1шт.
Part of seal kit P/N G100777
1шт.
Gland has identification ring.
1шт.
Part of seal kit P/N G34653
1шт.
6
D38858
BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
RING - backup
1шт.
Gland has identification ring.
1шт.
Part of seal kit P/N G34653
1шт.
7
A27994
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
- gland
1шт.
Gland has identification ring.
1шт.
Part of seal kit P/N G34653
1шт.
8
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8 - 32 NC x 1/4"
1шт.
9
G33885
ROD
- piston
1шт.
10
G33180
PISTON
- split, rod end
1шт.
11
G33182
PISTON
- split, bolt end
1шт.
13
G33186
MISC PACKAGING
PACKING ASSEMBLY - piston, not shown assembled, Includes: Ref. 13 and 14
1шт.
Gland has identification ring.
1шт.
Part of seal kit P/N G34653
1шт.
13
NSS
NOT SOLD SEPARAT
PACKING - V-type
1шт.
14
NSS
NOT SOLD SEPARAT
ADAPTER - packing
1шт.
15
G33181
RING
- wear, piston
1шт.
16
28-1648
BOLT,Hex, 1" - 14 x 3", Gr 8
- hex, 1" - 14 NF x 3", grade 8
1шт.
17
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- hardened
1шт.
G34653
SEAL
KIT - seal, Includes Refs. 4, 5, 6, 7 and 13
1шт.
Gland has identification ring.
1шт.
G100777
SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk
- piston rod, service option - severe heat or cold
1шт.
Gland has identification ring.
1шт.
Выбрано товаров: 35
