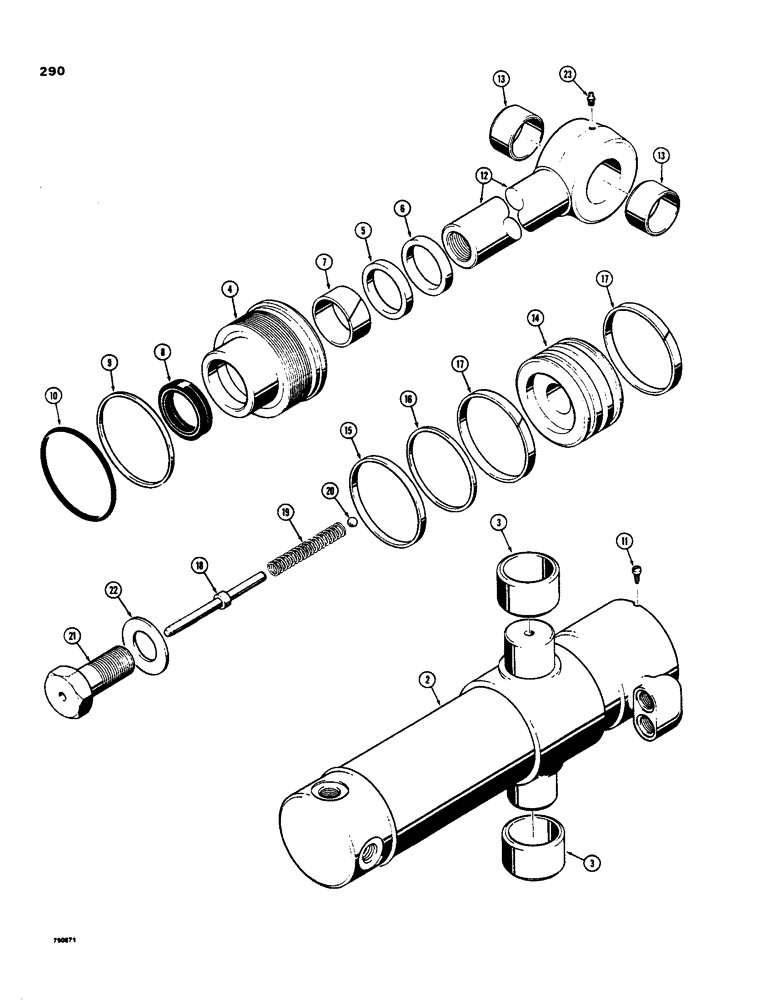

Запчасти Case 35 (290) - G101791 SIDE SHIFT BACKHOE SWING CYLINDER, WITH MALE TRUNNION & ONE PIECE PISTON

1

G101791

CYLINDER

ASESMBLY - swing, 4" (102 mm) ID x 11-1/4" (286 mm) stroke, not shown assembled, Includes: Ref. 2 - 23

1шт.

2

G34902

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G347875

BUSHING - tube trunnion

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

7

G34322

BEARING

- center

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Part of seal kit P/N G100778

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34775

ROD ASSY.

ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- piston rod

2шт.

14

G101309

PISTON

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

18

G102826

PIN

- cushion relief

1шт.

19

D39683

SPRING - cushion relief

1шт.

20

211-14

BALL,9/16" Dia

- cushion relief spring

1шт.

21

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston retaining

1шт.

22

G32351

WASHER

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9 and 10

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option severe heat or cold

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.
