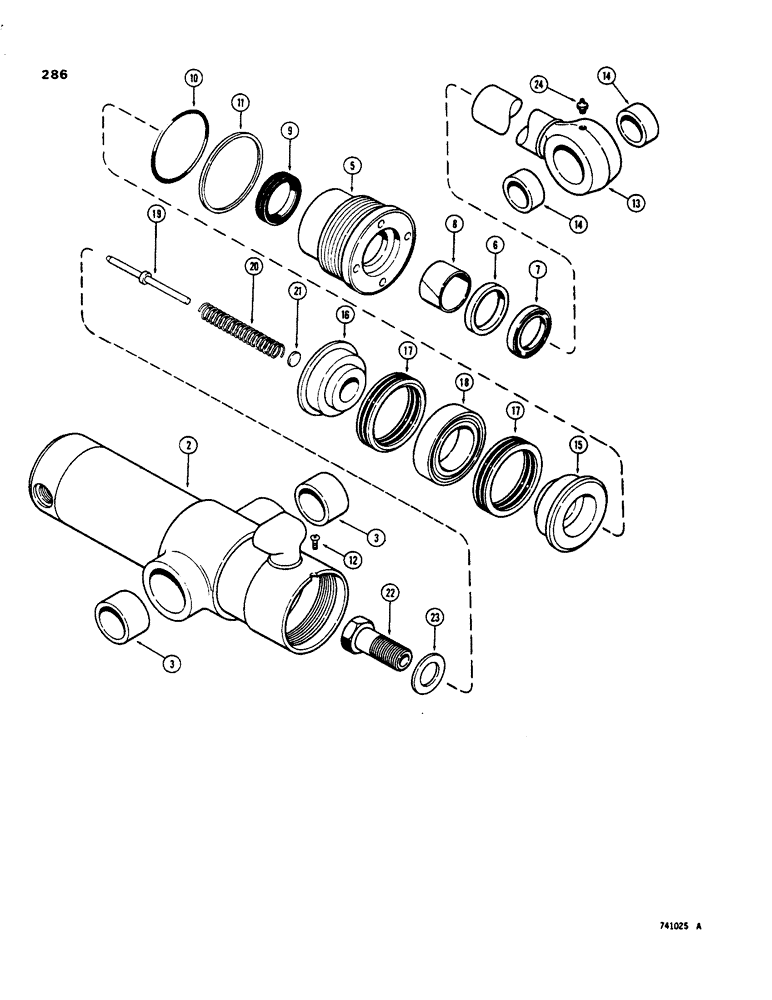

Запчасти Case 35 (286) - G33918 SIDE SHIFT BACKHOE SWING CYLINDER, WITH FEMALE TRUNNION & TWO PIECE PISTON

1

G33918

CYLINDER

ASSEMBLY - swing, side shift, 4" (102 mm) ID x 11-1/4" (286 mm) stroke not shown assembled, Includes: Ref. 2 - 24

1шт.

2

G33919

TUBE,4" DIA x 18.49" L

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

- tube trunnion

2шт.

4

RESERVED

1шт.

G34331

GLAND

ASSEMBLY - with bushing, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND -

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34954

1шт.

8

G34322

BEARING

- center

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34954

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100778

1шт.

Part of seal kit P/N G34954

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34954

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34954

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self- tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G33712

CYLINDER BLOCK

ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33159

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

- V-type

2шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34954

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

G102826

PIN

- cushion relief

1шт.

20

D38683

SPRING

- cushion relief

1шт.

21

D38684

SPACER

- cushion relief spring

1шт.

22

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston

1шт.

23

G32351

WASHER

- hardened

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
