Запчасти Case 35 (276) - G32096 BACKHOE SWING CYLINDER, WITH FEMALE TRUNNION BUSHINGS & ONE PIECE PISTON

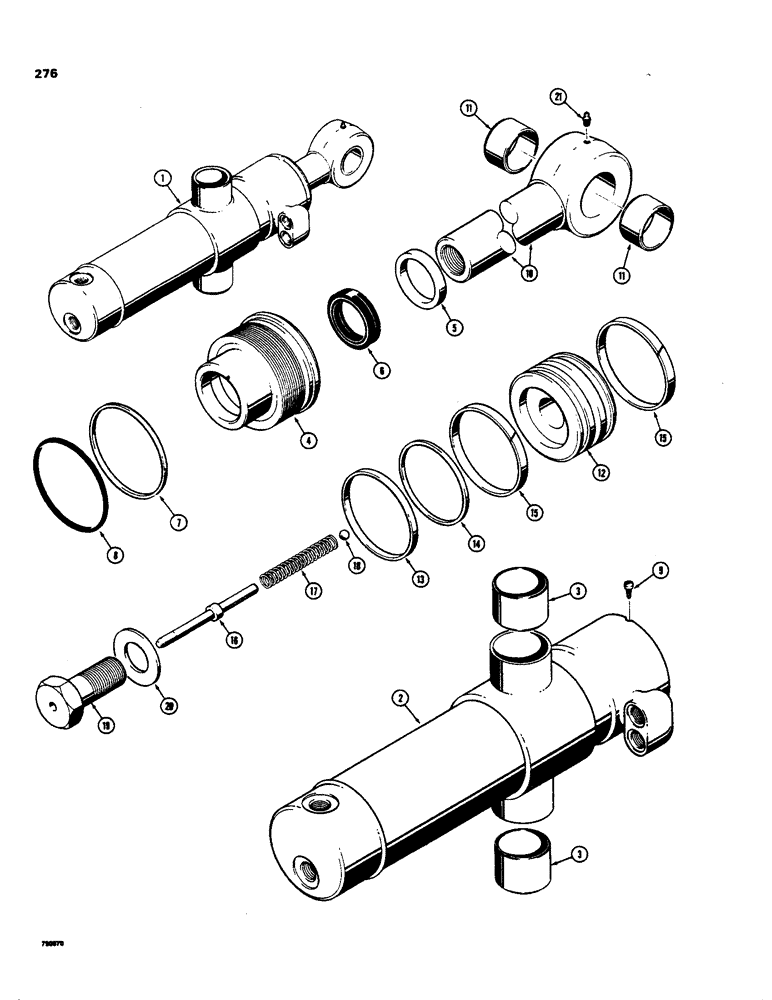

Схема запчастей Case 35 - (276) - G32096 BACKHOE SWING CYLINDER, WITH FEMALE TRUNNION BUSHINGS & ONE PIECE PISTON

Артикул

Название

Примечание

Количество

1

G32096

CYLINDER ASSY.

CYLINDER ASSEMBLY - swing, 4" (102 mm) ID x 11-7/32" (285 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

G32390

TUBE,101.47 mm ID x 101.6 mm DIA x 471.4 mm L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

- tube trunnion

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - with bushing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

6

36971

PRESSURE PIPE

SEAL - piston rod

1шт.

Part of seal kit P/N G100778

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

8

27507

SPROCKET

O-RING - gland

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G33172

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 11

1шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

12

G101309

PISTON

- cylinder

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

14

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

15

G100448

RING,101.6mm OD, Ext

- wear

2шт.

16

G102826

PIN

- cushion relief

1шт.

17

D38683

SPRING

- cushion relief

1шт.

18

211-14

BALL,9/16" Dia

1шт.

19

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston retaining

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 5, 6, 7 and 8

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to be on cylinder gland or tube.

1шт.
