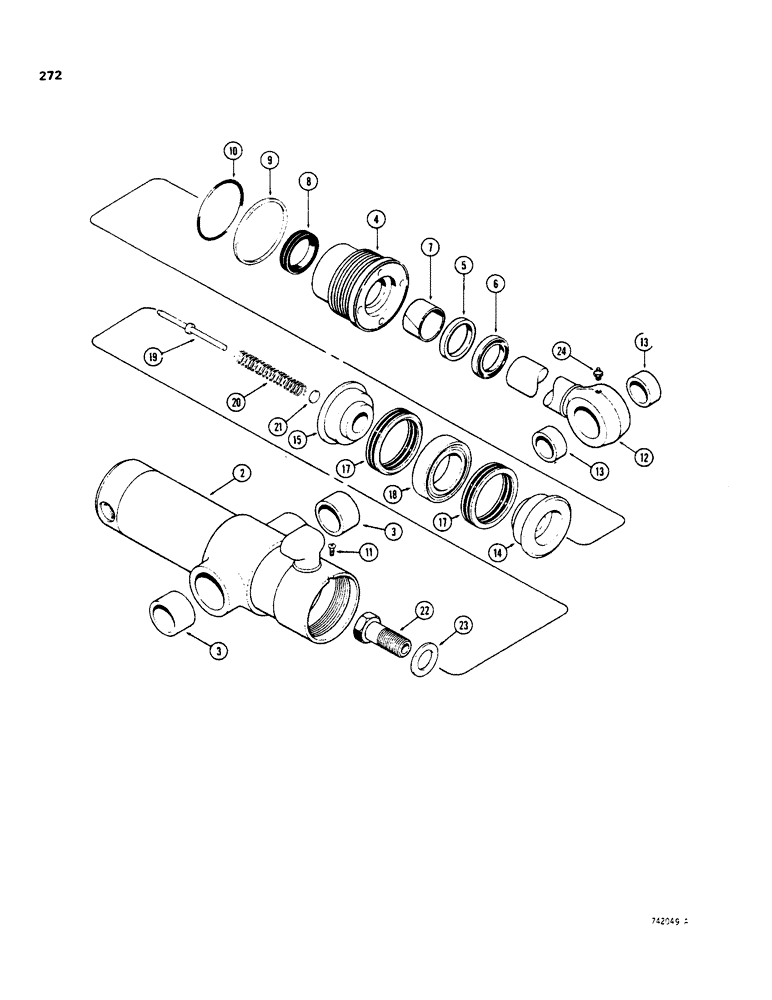

Запчасти Case 35 (272) - G32096 BACKHOE SWING CYLINDER, WITH FEMALE TRUNNION BUSHINGS & TWO PIECE PISTON

1

G32096

CYLINDER ASSY.

CYLINDER ASSEMBLY - swing, 4" (102 mm) ID x 11-7/32" (285 mm) stroke, not shown assembled, Includes: Ref. 2 - 24

1шт.

2

G32390

TUBE,101.47 mm ID x 101.6 mm DIA x 471.4 mm L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

- tube trunnion

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - with bushing

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

7

G34322

BEARING

BUSHING - center

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100778

1шт.

Part of seal kit P/N G34594

1шт.

9

32176

HUB

RING - backup

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

12

G33172

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G33159

PISTON

- split, rod end

1шт.

15

D49161

PISTON

- split, bolt end

1шт.

16

RESERVED

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, V-type

2шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34594

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

G102826

PIN

- cushion relief

1шт.

20

D38683

SPRING

- cushion relief

1шт.

21

D38684

SPACER

- cushion relief spring

1шт.

22

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston and cushion relief

1шт.

23

G32351

WASHER

- hardened

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - staight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10 and 17

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
