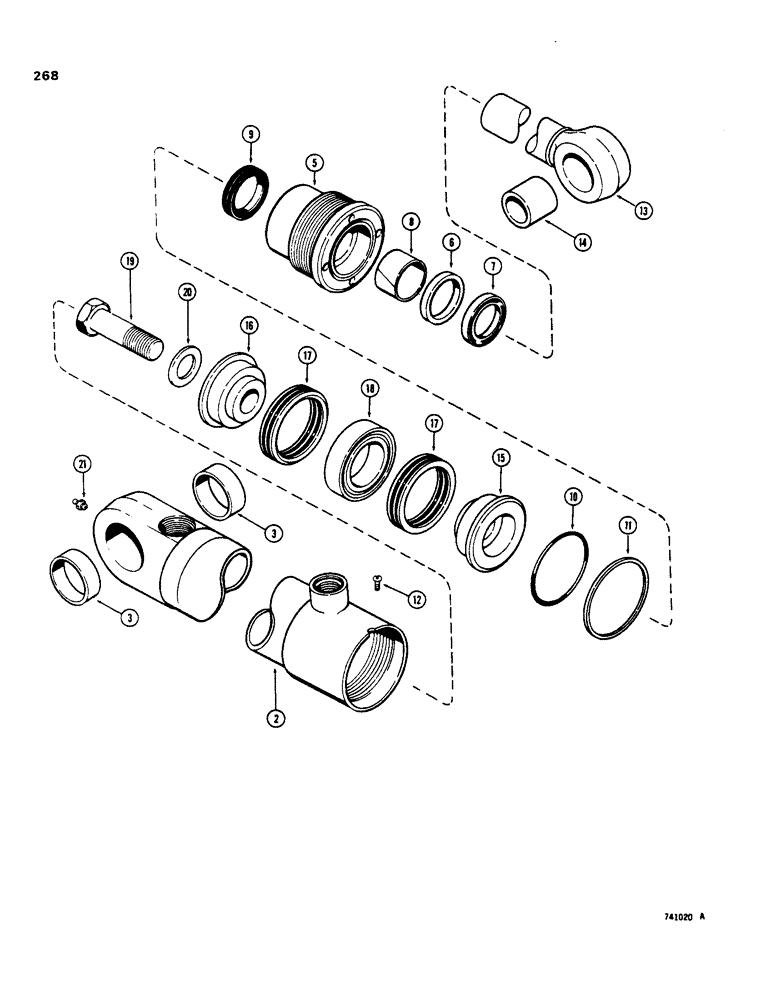

Запчасти Case 35 (268) - G34680 SIDE SHIFT BACKHOE STABILIZER CYLINDER, WITH TWO PIECE PISTON

1

G34680

CYLINDER BLOCK

CYLINDER ASSEMBLY - stabilizer, 3-1/2" (89 mm) ID x 11-1/2" (292 mm) stroke, not shown assembled, Includes: Ref. 2 - 21

1шт.

2

D36680

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

RESERVED

1шт.

G34623

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G100777

1шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34678

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 14

1шт.

14

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

15

G33520

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston, V-type

2шт.

Gland is stamped with cylinder part number.

1шт.

Part of seal kit P/N G34655

1шт.

18

D47208

RING

- center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G34655

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

Gland is stamped with cylinder part number.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Gland is stamped with cylinder part number.

1шт.
