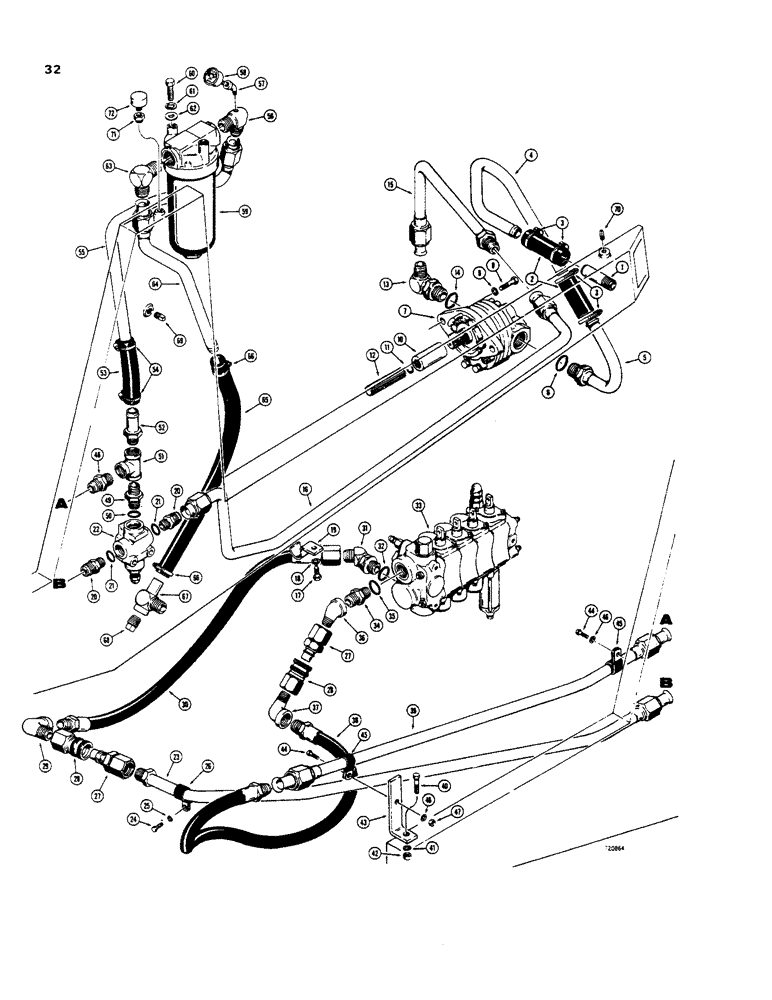

Запчасти Case 35 (032) - PRIMARY HYDS, *USED ON NONLOADER MDLS ONLY, LOADER SN 5228454 & AFT

1

D33363

FITTING

STEM - hose, suction, at subframe

1шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction , low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

D55652

TUBE

- suction, upper

1шт.

5

D36747

STEM

- hose, suction, at pump, Includes: Ref. 6

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

D52271

PUMP

- hydraulic, parts list Figure 164

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC 1-3/4"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

D31108

SPLINED COUPLING

COULPING - pump to driveshaft, Includes: Ref. 11

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

12

D64311

SHAFT

- drive, pump, see Figure 154 for units with pump alingment kit

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

D55369

TUBE

- pressure, front

1шт.

16

D55650

TUBE

- pressure, intermediate

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pressure, intermediate Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

D55880

CLAMP

-, Serial Range: tube-subframe

1шт.

20

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D52170

VALVE - relief, parts list Figure 164

1шт.

23

D55648

TUBE - pressure, rear

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

27

D52694

QUICK MALE COUPLING

COULPING - quick disconnect, male, parts list Figure 162

2шт.

28

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Figure 162

2шт.

29

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

30

D52667

HOSE

- pressure line to 3 point hitch valve, 36" (941 mm) long

1шт.

31

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 32 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

33

D52970

CONTROL VALVE

VALVE - control, 3 point hitch, parts list Figure 144

1шт.

34

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degree

1шт.

37

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

38

D49118

HOSE

- return, 3 points hitch valve to filter, 33" (838 mm) long

1шт.

39

D55646

TUBE - return, 3 point hitch, Serial Range: valve-filter

1шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

1шт.

41

92-8

LOCK WASHER,1/2"

1шт.

42

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC

1шт.

43

D52872

BRACKET - hose and clamp support

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

45

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

1шт.

48

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

49

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 50

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

51

221-425

FITTING,3/4" NPT

TEE - pipe, female

1шт.

52

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

STEM - hose, straight, at pipe tee

1шт.

53

D25759

HOSE

- return, Serial Range: line-filter

1шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

55

D55676

TUBE -, Serial Range: return-filter

1шт.

56

D55728

ELBOW UNION

ELBOW - 90 degree, special

1шт.

57

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degree, 1/8" NPT

1шт.

58

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

59

43567

BRACKET

FILTER - hydraulics oil, parts list Figure 162

1шт.

60

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

61

92-8

LOCK WASHER,1/2"

2шт.

62

195-33

WASHER,1/2"

- plain, 1/2"

2шт.

63

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- male, 90 degree

1шт.

64

D55678

TUBE - return, from filter

1шт.

65

D23886

HOSE

- return, from filter

1шт.

66

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

67

D33590

STEM - hose, 90 degree, at subframe

1шт.

68

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT

1шт.

69

22113

HYDRAULIC HOSE,0.38" ID x 17.00", SAE J517, SAE J516, SAE J846, SAE J1273

Square Head 0.38" ID x 17.00", SAE J517, SAE J516, SAE J846, SAE J1273

1шт.

70

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head, 1/4" NPT

1шт.

71

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducing, breather

1шт.

72

31543

BREATHER

- reservoir

1шт.
