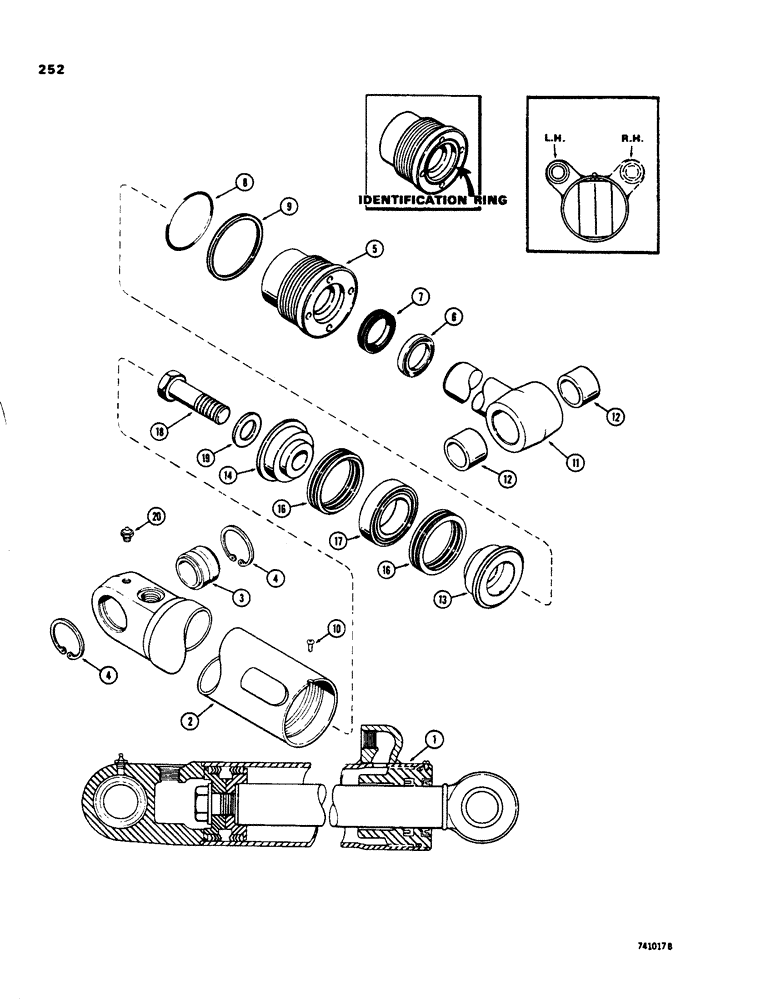

Запчасти Case 35 (252) - G32725 AND G32726 BACKHOE STABILIZER CYLINDERSS, USED ON MODELS WITHOUT CAB

1

G32726

CYLINDER ASSEMBLY - stabilizer, RH, 3-1/2" (89 mm) ID x 19-3/8" (493 mm) stroke, Includes: Ref. 2 - 20

1шт.

1

G32725

CYLINDER ASSEMBLY - stabilizer, LH, 3-1/2" (89 mm) ID x 19-3/8" (493 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G32754

TUBE ASSEMBLY - cylinder, RH, Includes: Ref. 3 and 4 28.47" L

1шт.

2

G32753

TUBE ASSEMBLY - cylinder, LH, Includes: Ref. 3 and 4 28.47" L

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube, self-adjusting

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

G33191

GLAND

ASSEMBLY - cylinder, order G34629, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G34651

1шт.

7

D36971

RING

SEAL - piston rod

1шт.

Part of seal kit P/N G100778

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G34651

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G34651

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G34651

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33173

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

ROD ASSY HAS A 1" THREAD

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G33167

PISTON

- split, rod end

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

RESERVED

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston, V-type

2шт.

Gland has identification ring.

1шт.

Part of seal kit P/N G34651

1шт.

17

D47208

RING

- center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

BOLT IS A 1" BOLT

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8 " NPT

1шт.

G34651

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9 and 16 replaces G32729

1шт.

Gland has identification ring.

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
