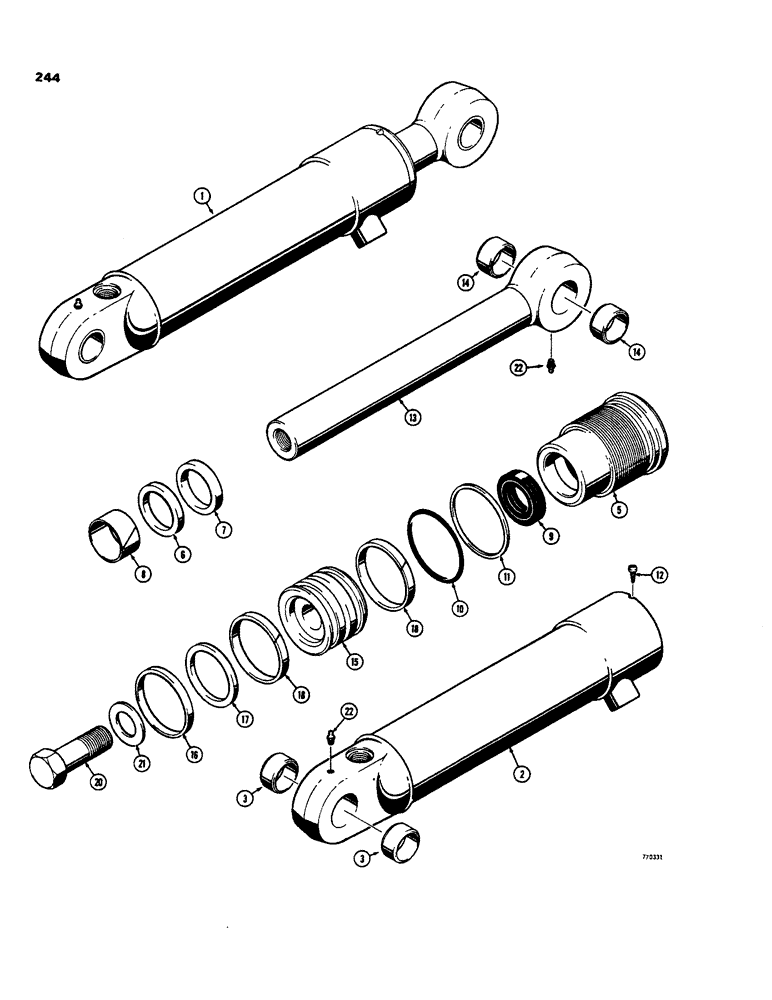

Запчасти Case 35 (244) - G101190 AND G101191 LOADER CLAM CYLINDERS, WITH ONE PIECE PISTON

1

G101190

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, RH, 3" (76 mm) ID x 9" (229 mm) stroke, see footnote, Includes: Ref. 2 - 22

1шт.

1

87454017R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY - clam, RH, 3" (76 mm) ID x 9" (229 mm) stroke

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

G101191

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, LH, 3" (76 mm) ID x 9" (229 mm) stroke see footnote, Includes: Ref. 2 - 22

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE ASSEMBLY - RH cylinder, Includes: Ref. 3

1шт.

2

G32304

HYD TUBE

TUBE ASSEMBLY - LH cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

RESERVED

1шт.

G34633

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G100777

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G33800

PISTON ROD

ROD ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G100704

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

19

RESERVED

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G102405

SEAL

KIT - seal, Includes: Refs. 7 - 11 and 16 - 18

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
