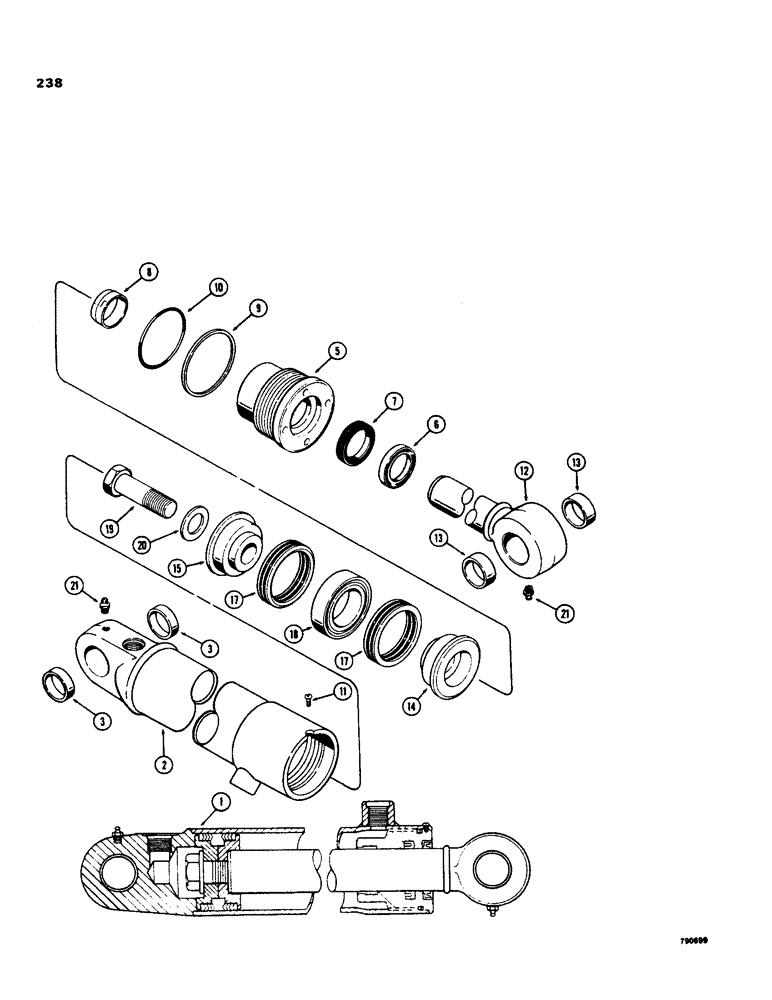

Запчасти Case 35 (238) - G32286 AND G32287 LOADER CLAM CYLINDERS

1

G32287

CYLINDER ASSEMBLY - clam, RH, 3" (76 mm) ID x 9" (229 mm) stroke order G101190, Includes: Ref. 2 - 21

1шт.

1

G32286

CYLINDER

ASSEMBLY - clam, LH, 3" (76 mm) ID x 9" (229 mm) stroke, order G101191, Includes: Ref. 2 - 21

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE ASSEMBLY - RH cylinder, Includes: Ref. 3

1шт.

2

G32304

HYD TUBE

TUBE ASSEMBLY - LH cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

RESERVED

1шт.

G32735

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset B

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G100777

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

8

D27432

SHIM

- piston rod, inner

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 -32 NC x 1/4"

1шт.

12

G32307

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, order G33800 rod, G33331 piston and G34633 gland assembly, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28897

PISTON

- split, rod end

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 17 and 18

1шт.

Part of seal kit P/N G34642

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34642

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10 and 16 replaces G32289

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Gland has solid outer rod wiper, no identification ring.

1шт.
