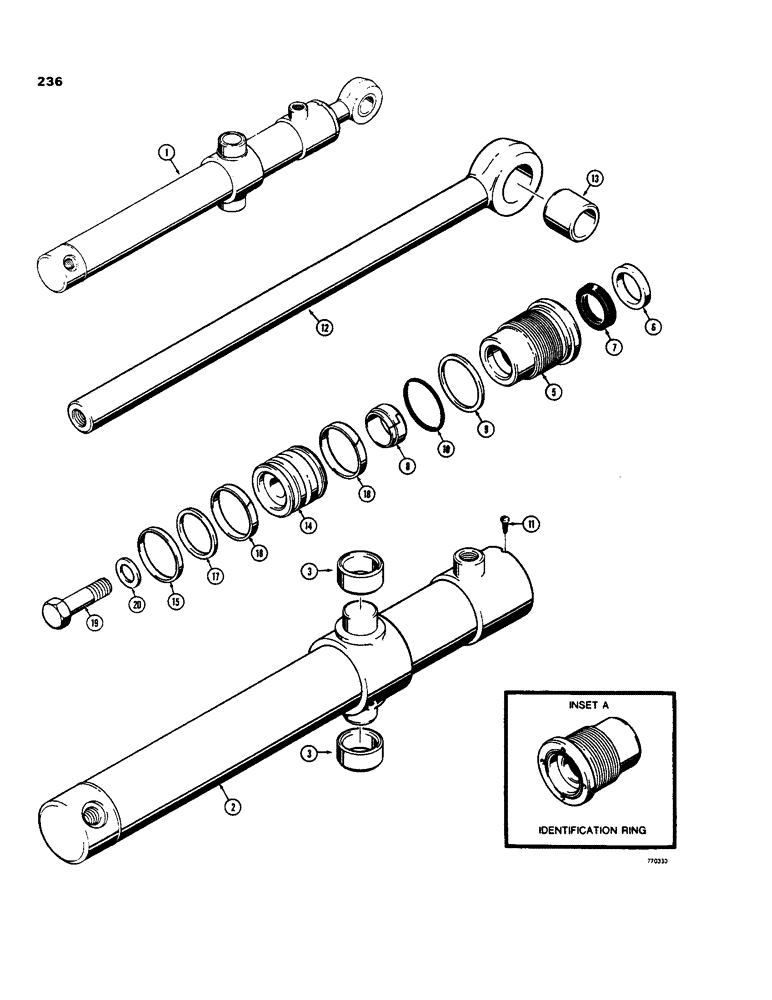

Запчасти Case 35 (236) - G101186 AND G101187 LOADER BUCKET TILT CYLINDERS, WITH ONE PIECE PISTON

1

G101186

CYLINDER

ASSEMBLY - tilt, RH, 2-1/2" (64 mm) ID x 20" (508 mm) stroke, Includes: Ref. 2 - 20

1шт.

1

G101187

CYLINDER

ASSEMBLY - tilt, LH, 2-1/2" (64 mm) ID x 20 (508 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

D31098

TUBE

ASSEMBLY - RH cylinder, Includes: Ref. 3

1шт.

2

D31099

TUBE

ASSEMBLY - LH cylinder, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

4

RESERVED

1шт.

G33487

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder, see inset A

1шт.

6

95142

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G102406

1шт.

Part of seal kit P/N G100776

1шт.

Gland has identification ring.

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner, if used

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

10

28318

O-RING - gland

1шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

12

G33422

ROD

ASSEMBLY - piston, 1-1/2" (38 mm), Includes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.

14

G100706

PISTON

- cylinder

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

16

RESERVED

1шт.

17

100714

BEARING

RING - backup

1шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

18

G100714

RING

- wear

2шт.

Part of seal kit P/N G102406

1шт.

Gland has identification ring.

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

Part of seal kit P/N 102406

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G102406

SEAL

KIT - seal, Includes Refs. 6, 7, 9, 10, 15, 17, 18 and 19

1шт.

Gland has identification ring.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
