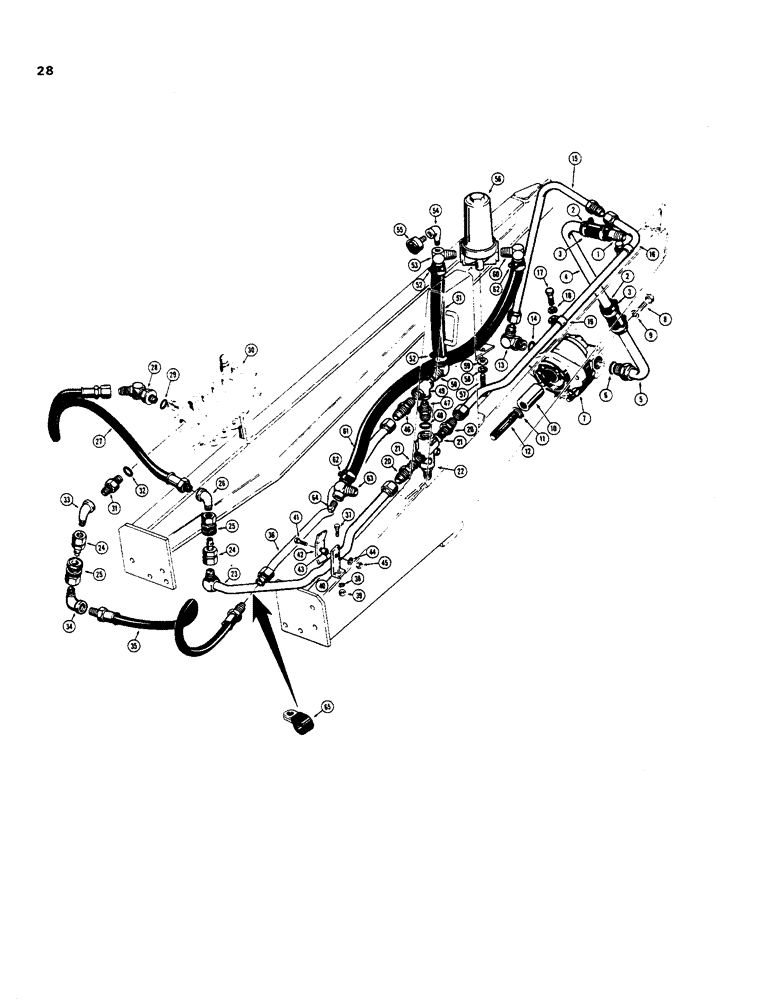

Запчасти Case 35 (028) - PRIMARY HYDS, *USED ON NONLOADER MDLS ONLY, BEF LOADER SN 5228454

1

D33363

FITTING

STEM - hose, suction, at subframe

1шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction , low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

D36752

TUBE - suction, upper

1шт.

5

D36747

STEM

- hose, suction, at pump, Includes: Ref. 6

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

D52271

PUMP

- hydraulic, parts list Figure 164

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

D31108

SPLINED COUPLING

COUPLING - pump to driveshaft, Includes: Ref. 11

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

12

D64311

SHAFT

- drive, pump, see Figure 154 for units pump alignment kit

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º - male, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

D30563

TUBE ASSY.

TUBE - pressure, front

1шт.

16

D51265

TUBE - pressure, intermediate

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

R11405

CLAMP

-, Serial Range: tube-subframe

2шт.

20

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D52170

VALVE - relief, parts list Figure 164

1шт.

23

D55646

TUBE - pressure, rear

1шт.

24

D52694

QUICK MALE COUPLING

COUPlING - quick disconnect, male, parts list Figure 162

2шт.

25

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Figure 162

2шт.

26

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

27

D52667

HOSE

- pressure line to 3 point hitch valve, 36" (914 mm) long

1шт.

28

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 29 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

D52970

CONTROL VALVE

VALVE - control, 3 point hitch, parts list Figure 144

1шт.

31

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

CONNECTOR - male, straight, Includes Ref 32

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

33

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- steet, 45 degree

1шт.

34

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

35

D49118

HOSE

- return, 3 point valve to filter, 33" (838 mm) long

1шт.

36

D55648

TUBE - return, 3 point hitch, Serial Range: valve-filter

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC 1-3/4"

1шт.

38

92-8

LOCK WASHER,1/2"

1шт.

39

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2" - 13 NC

1шт.

40

D52872

BRACKET - hose and clamp support

1шт.

41

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 3/8" - 16 NC x 2-1/4"

1шт.

42

D45576

CLAMP

- tube

2шт.

43

D45740

SPACER - tube clamp

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8" - 16NC

1шт.

46

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

47

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 48

1шт.

48

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

49

221-425

FITTING,3/4" NPT

TEE - pipe, female

1шт.

50

217-331

FITTING,90 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM - hose, 90 degree, at pipe tee

1шт.

51

D25759

HOSE

- return, Serial Range: line-filter

1шт.

52

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

53

D52163

STEM - hose, 90 degree, at filter

1шт.

54

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

55

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

56

D43567

FILTER ASSY

- hydraulic oil, parts list Figure 162

2шт.

57

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

58

92-8

LOCK WASHER,1/2"

2шт.

59

195-33

WASHER,1/2"

- plain, 1/2"

2шт.

60

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degree, at filter

1шт.

61

D32678

HOSE

- return, Serial Range: filter-subframe

1шт.

62

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

63

D33590

STEM - hose, 90 degree, at subframe

1шт.

64

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT

1шт.

65

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- hose

1шт.
