Запчасти Case 33 (224[1]) - LOADER CONTROL VALVE, CHECK VALVE

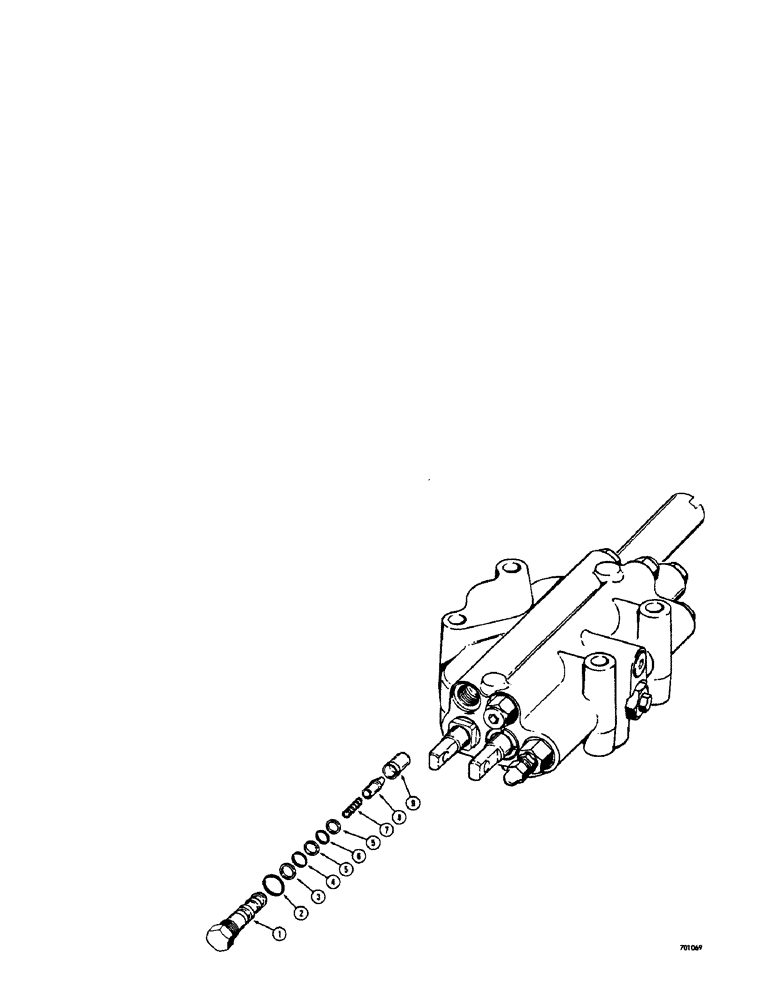

Схема запчастей Case 33 - (224[1]) - LOADER CONTROL VALVE, CHECK VALVE

Артикул

Название

Примечание

Количество

1

D37066

CAP

- check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Check valve cap (Large)

1шт.

3

D37071

RING

- backup, center "O" ring

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, check valve cap (Center)

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring

2шт.

6

D37149

O-RING,104 mm ID

SEAL - "O" ring, check valve cap (Small)

1шт.

7

D37067

SPRING

- check valve

1шт.

8

D37068

VALVE POPPET

POPPET - check valve

1шт.

9

D37069

SLEEVE

SEAT - poppet

1шт.

Выбрано товаров: 9
