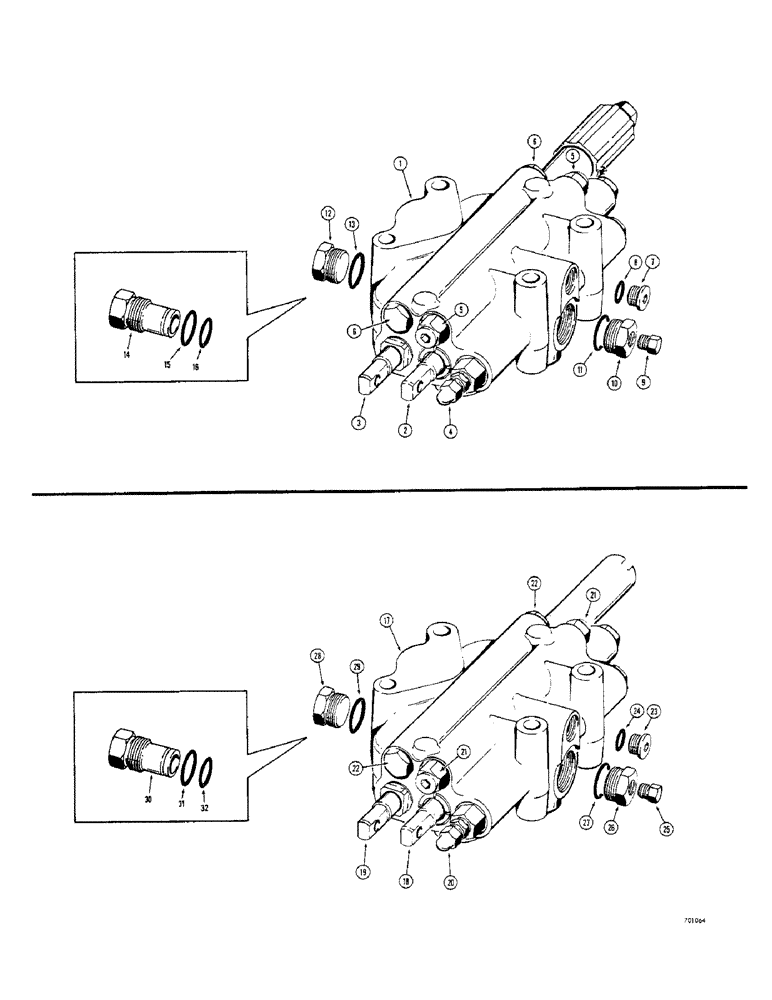

Запчасти Case 33 (214) - LOADER CONTROL VALVES-2 SPOOL, D38573 LOADER CONTROL VALVE-2 SPOOL

1

D38573

VALVE - loader control, 2 spool (Parker series VDP-22), Includes: Ref. 2 - 11

1шт.

2

D37050

SPOOL

loader tilt (Parts list Figure 218)

1шт.

2

D37051

SPOOL

loader tilt (Parts list Figure 218)

1шт.

2

D37052

SPOOL

loader tilt (Parts list Figure 218)

1шт.

2

D37053

SPOOL

loader tilt (Parts list Figure 218)

1шт.

3

D37054

SPOOL

loader lift (Parts list Figure 220)

1шт.

3

D37055

SPOOL

loader lift (Parts list Figure 220)

1шт.

3

D37056

SPOOL

loader lift (Parts list Figure 220)

1шт.

3

D37057

loader lift (Parts list Figure 220)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 218)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Figure 224)

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 224)

2шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL

1шт.

9

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square head (1/4" NPT)

1шт.

10

D38825

ADAPTER

- valve port, Includes: Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port (Loader models only), Includes Ref. 13 Hex Hd, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

D61251

FITTING

CONNECTOR - power beyond (Loader backhoe models only), Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - large

1шт.

16

L32680

RING

SEAL - small

1шт.

17

D45040

VALVE

- loader control, 2 spool (Parker series VDP-22), Includes: Ref. 18 - 27

1шт.

18

D37050

SPOOL

loader tilt (Parts list Figure 218), D45040 loader control valve-2 spool

1шт.

18

D37051

SPOOL

loader tilt (Parts list Figure 218), D45040 loader control valve-2 spool

1шт.

18

D37052

SPOOL

loader tilt (Parts list Figure 218), D45040 loader control valve-2 spool

1шт.

18

D37053

SPOOL

loader tilt (Parts list Figure 218), D45040 loader control valve-2 spool

1шт.

19

D46024

SPOOL

loader lift (Parts list Figure 222), D45040 loader control valve-2 spool

1шт.

19

D46025

SPOOL

loader lift (Parts list Figure 222), D45040 loader control valve-2 spool

1шт.

19

N6592

VALVE

SPOOL - loader lift (Parts list Figure 222), D45040 loader control valve-2 spool

1шт.

19

D46027

SPOOL

loader lift (Parts list Figure 222), D45040 loader control valve-2 spool

1шт.

20

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 218), D45040 loader control valve-2 spool

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Figure 224), D45040 loader control valve-2 spool

2шт.

22

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 224), D45040 loader control valve-2 spool

2шт.

23

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, D45040 loader control valve-2 spool, Incl Ref 24 Hex Soc, 3/4"-16 ORB

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - D45040 loader control valve-2 spool

1шт.

25

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square head (1/4" NPT), D45040 loader control valve-2 spool

1шт.

26

D38825

ADAPTER

- valve port, D45040 loader control valve-2 spool, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - , D45040 loader control valve-2 spool

1шт.

28

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port (Loader models only), D45040 loader control valve-2 spool, Includes Ref. 29 Hex Hd, 1 5/16"-12 ORB

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - , D45040 loader control valve-2 spool

1шт.

D61251

FITTING

CONNECTOR - power beyond (Loader backhoe models only), D45040 loader control valve-2 spool, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond, D45040 loader control valve-2 spool

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - large, D45040 loader control valve-2 spool

1шт.

32

L32680

RING

SEAL - small, D45040 loader control valve-2 spool

1шт.
