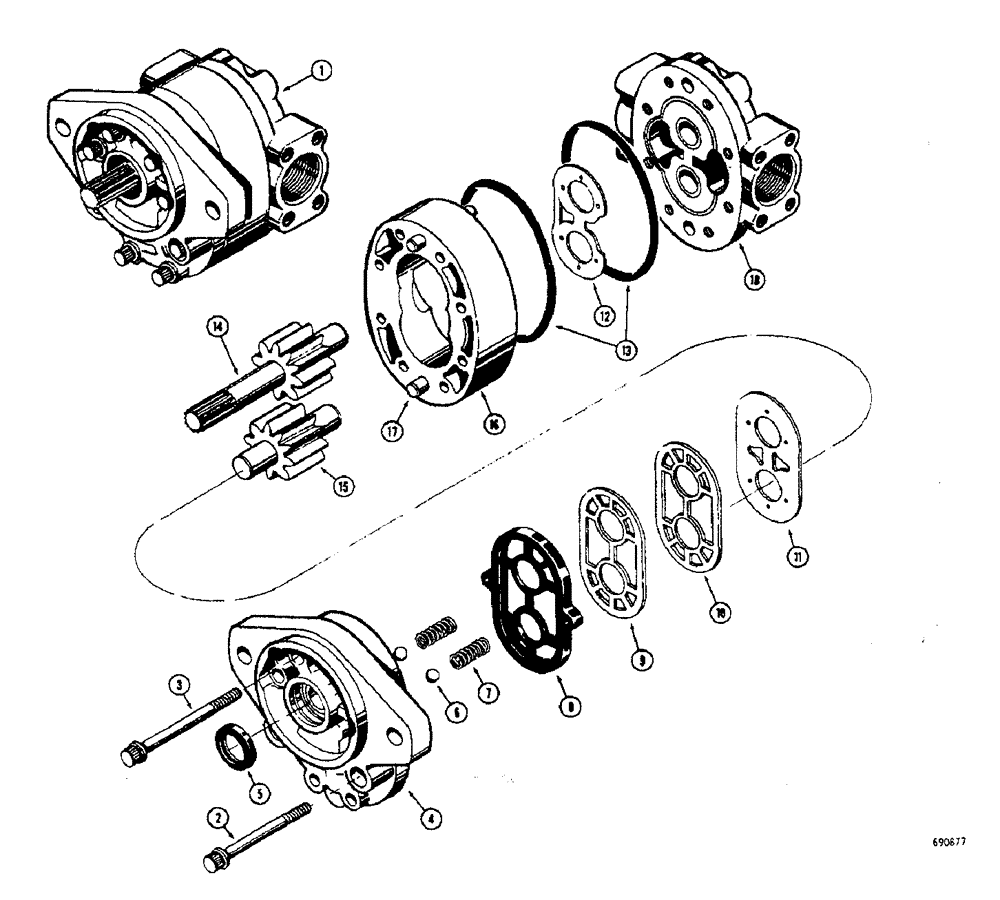

Запчасти Case 33 (206[1]) - *D48950 HYDRAULIC PUMP USED ON HYDRAULIC EXTENDABLE DIPPER MODELS BEFORE BACKHOE SN. 4176351

1

D48950

PUMP

- hydraulic, Cessna no. 24505 - LAD 924 to 25 G.P.M. at 2000 R.P.M. at 2000 P.S.I), Includes: Ref. 2 - 18

1шт.

D53690R

REMAN-HYD PUMP

33, 33 BACKHOE FOR 580CK, 33S HYDRAULIC PUMP USED ON HYDRAULIC EXTENDABLE DIPPER MODELS BEFORE BACKHOE SN. 4176351 all are , Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

SCREW - Ferry cap (3/8" x 3-3/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - Ferry cap (3/8" x 3-1/2")

4шт.

4

D48879

COVER

- drive shaft end

1шт.

D48884

SEAL

KIT - pump, rebuild, Includes: Ref. 5 - 13

1шт.

5

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

6

D31404

BALL

- steel

2шт.

7

D31403

SPRING

- ball retaining

2шт.

8

D31397

SEAL

- diaphragm

1шт.

9

A42303

GASKET

- backup

1шт.

10

A42305

GASKET

- protector

1шт.

11

A42304

DIAPHRAGM

- pump

1шт.

12

D41322

PLATE

- thrust

1шт.

13

D48887

O-RING

SEAL - "O"ring, 4-3/4"

2шт.

D48881

GEAR

SET, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVE SHAFT AND GEAR - pump

1шт.

15

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR

1шт.

16

D48880

HOUSING

- gear

1шт.

17

D48882

PIN

- dowel

2шт.

18

D48883

COVER

- port end

1шт.

D56471 replaced by D56471 Per ECS 3072-47

1шт.

D31397 replaced by D48888 Per ECS 170-294

1шт.

D48884 replaced by D59656 Per ECS D3073-17

1шт.
