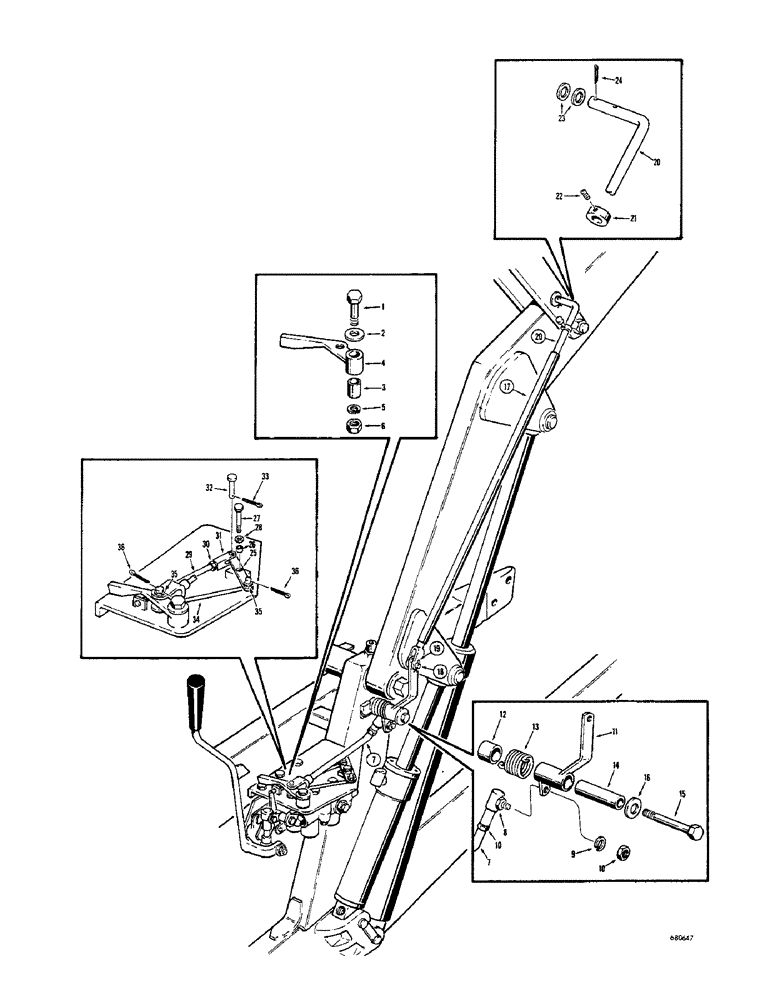

Запчасти Case 33 (016) - LOADER RETURN TO DIG AND ANTI-ROLLBACK PARTS, (USED ON
№
Артикул
Название
Примечание
Количество
1
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
HHCS - 3/8" - 16 NC x 2-1/2"
1шт.
2
95-6
WASHER,3/8"
- plain () 3/8"
1шт.
3
D37559
SLEEVE
- latch
1шт.
4
D37577
LATCH ASSY.
LATCH - dig return
1шт.
5
92-6
LOCK WASHER,3/8"
if used 3/8"
1шт.
6
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC) If used
1шт.
131-352
LOCK NUT,3/8"-16, GA
NUT - hex., lock (3/8" - 16 NC) If used
1шт.
7
D43968
DRAG LINK
ROD - connecting, Serial Range: latch-lever
1шт.
8
D38296
JOINT
BALL JOINT - connecting rod
1шт.
9
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
1шт.
10
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
2шт.
11
D44015
LEVER
- dig return
1шт.
12
D37569
SPACER,1 1/2" Tube x 5/8"
- lever
1шт.
13
D37560
VALVE SPRING
SPRING - lever
1шт.
14
D37564
SLEEVE CYLINDER
SLEEVE - spacer
1шт.
15
13-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
1шт.
16
195-33
WASHER,1/2"
- plain () 1/2"
1шт.
17
D37567
GUIDE
- rod
1шт.
18
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
1шт.
19
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
20
D37568
ROD
- connecting, lever to dump link
1шт.
21
D37570
COLLAR
- rod adjusting
1шт.
22
85-46
SET SCREW,Sq Hd, 1/4"-20 x 3/8"
SCREW - set, square head (1/4" - 20 NC x 3/8")
1шт.
23
195-33
WASHER,1/2"
- plain () 1/2"
2шт.
24
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
25
D43961
DRAG LINK
LEVER - pivot, anti-rollback
1шт.
26
D43962
BUSHING
SPACER - lever
1шт.
27
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
28
95-6
WASHER,3/8"
- plain () 3/8"
1шт.
29
D43965
PUSH ROD
ROD - stop, anti-rollback
1шт.
30
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
1шт.
31
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - rod
1шт.
32
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
1шт.
33
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
34
D43960
LINK
- connecting, pivot, Serial Range: lever-latch
1шт.
35
95-6
WASHER,3/8"
- plain () 3/8"
2шт.
36
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
Выбрано товаров: 37
