Запчасти Case 33 (182) - 3 POINT HITCH, (WITH SECTIONAL TYPE CONTROL VALVE) HYDRAULICS

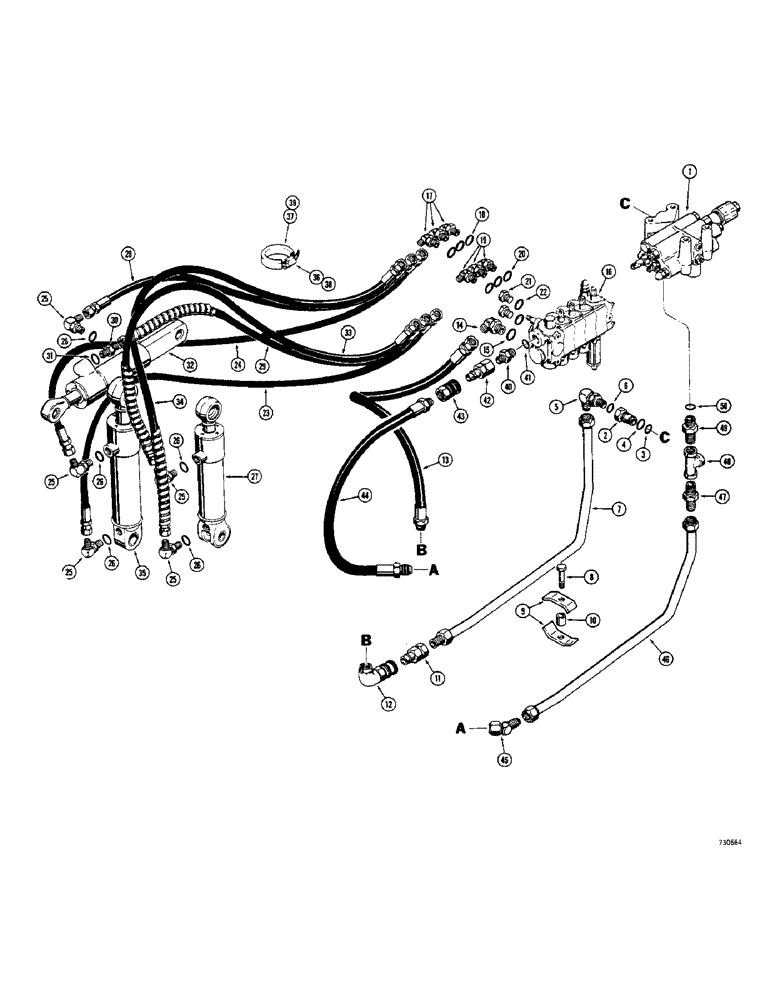

Схема запчастей Case 33 - (182) - 3 POINT HITCH, (WITH SECTIONAL TYPE CONTROL VALVE) HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - loader control (See Figures 214 and 216 for proper valve)

1шт.

2

D61251

FITTING

CONNECTOR ASSEMBLY - power beyond, Includes: Ref. 3 and 4

1шт.

3

L32680

RING

SEAL - "O"ring, small

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

5

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 6 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

128-5008

SEAL - "O"ring

1шт.

7

D47805

HOSE

TUBE - loader valve to 3 point hitch valve, pressure

1шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

D45576

CLAMP

- tube

2шт.

10

D45740

SPACER - tube clamp, center

1шт.

11

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 156)

1шт.

12

D52674

COUPLING

- quick disconnect, 90 degree female (Parts list Figure 158)

1шт.

13

D52667

HOSE

- loader valve to 3 point hitch valve, pressure (36" long)

1шт.

14

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 15 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

16

D52970

CONTROL VALVE

VALVE - control, 3 point hitch (Parts list Figure 188)

1шт.

17

D52943

ELBOW

- 45 degrees, restrictor (Upper ports), Includes: Ref. 18

3шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

19

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degrees, adjustable (Lower ports), Incl. Ref 20

3шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

21

214389

PLUG,3/4" - 16 ORB

Valve port, Includes Ref. 22 Hex Hd, 3/4"-16 ORB

2шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

23

D51685

HOSE

- valve to tilt cylinder, closed end (66" long)

1шт.

24

D51686

HOSE

- valve to tilt cylinder, rod end (54" long)

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, adjustable, Includes: Ref. 26

5шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, tilt (See Figure 338 for proper cylinder)

1шт.

28

D51688

HOSE

- valve to pitch cylinder, closed end (42" long)

1шт.

29

D52256

HOSE

- valve to pitch cylinder, rod end (45" long)

1шт.

30

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 31 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

REF

INSTRUCTION

CYLINDER - hydraulic, pitch (See Figures 340 and 342 for proper cylinder

1шт.

33

D52256

HOSE

- valve to lift cylinder, rod end (45" long)

1шт.

34

D51683

HOSE

- valve to lift cylinder, closed end (56" long)

1шт.

35

REF

INSTRUCTION

CYLINDER - hydraulic, lift (See Figure 336 for proper cylinder)

1шт.

36

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

37

D95252

TUBE

GUARD - hose (Used with 214-260 clamp only)

1шт.

38

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

39

D95251

TUBE

GUARD - hose (Used with 214-256 clamp only)

2шт.

40

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - straight, male, Includes: Ref. 41

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

42

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male (Parts list Figure 158)

1шт.

43

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list Figure 156)

1шт.

44

D49118

HOSE

- 3 point hitch valve to loader valve, return (33" long)

1шт.

45

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degrees, swivel

1шт.

46

D45743

TUBE

- 3 point hitch valve to loader valve, return

1шт.

47

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

48

221-425

FITTING,3/4" NPT

TEE - female

1шт.

49

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 50

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
