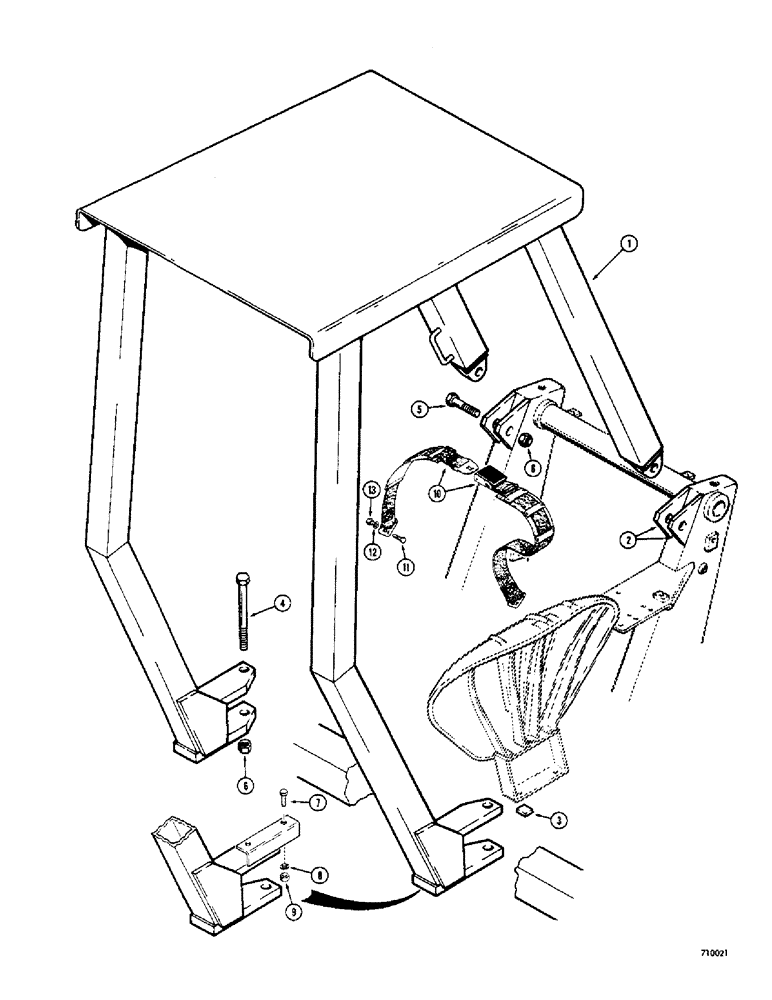

Запчасти Case 33 (166) - ROLL BAR AND SEAT BELTS, ROLLBAR

D15564

ROLL BAR - complete (Machinery item), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ROLL BAR - tractor (Use D15564)

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, roll bar to subframe

4шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - fender positioning

2шт.

4

13-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

2шт.

5

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

2шт.

6

25-1016

NUT,1"-8, G5

4шт.

D16238

ROLL BAR - complete (Machinery item), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

ROLL BAR - tractor (Use D16238), rollbar used on backhoe models w/long support arms

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, rollbar used on backhoe models w/long support arms

4шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - fender positioning (Not used with D53246 roll bar), rollbar used on backhoe models w/long support arms

2шт.

4

13-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

Rollbar used on backhoe models w/long support arms Hex, 1"-8 x 8", G5

2шт.

5

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

Rollbar used on backhoe models w/long support arms Hex, 1"-8 x 3 3/4", G5

2шт.

6

25-1016

NUT,1"-8, G5

Rollbar used on backhoe models w/long support arms 1"-8, G5

4шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rollbar used on backhoe models w/long support arms Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

rollbar used on backhoe models w/long support arms 1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC), rollbar used on backhoe models w/long support arms

4шт.

10

D49880

seat (Includes hardware) Used with Jr. Road King seat only, belts must be ordered w/ rollbar

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Belts must be ordered w/ rollbar Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

belts must be ordered w/ rollbar 1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC), belts must be ordered w/ rollbar

2шт.

10

D49975

seat (Includes hardware) Used with standard seat only, belts must be ordered w/ rollbar

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Belts must be ordered w/ rollbar Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

belts must be ordered w/ rollbar 1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC), belts must be ordered w/ rollbar

2шт.
