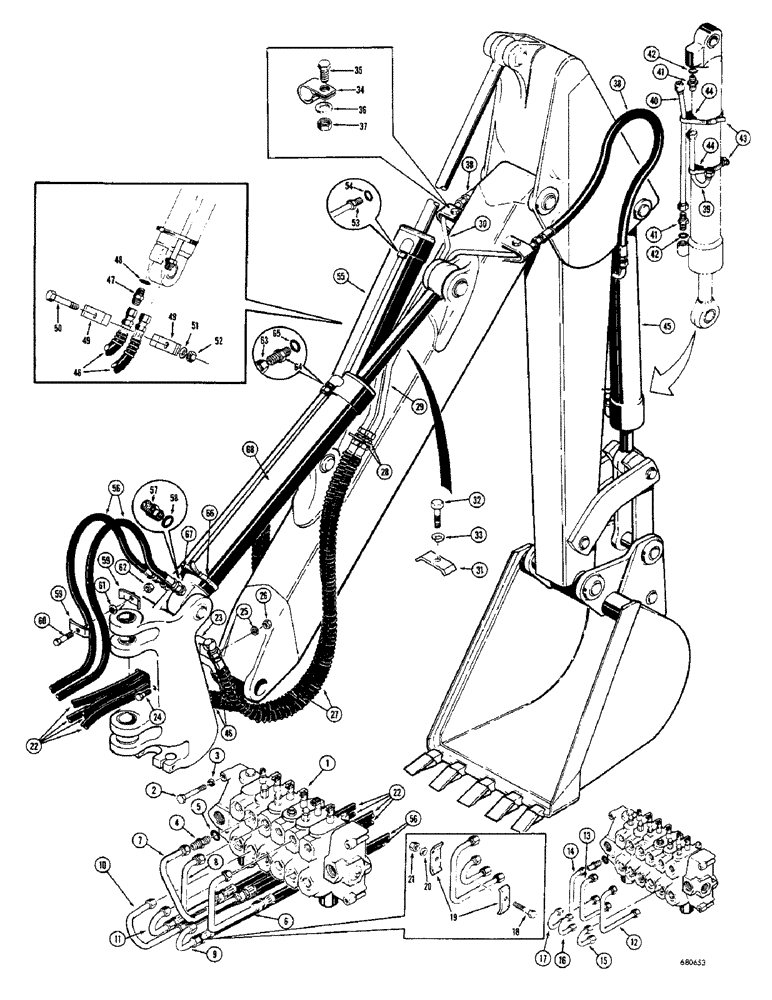

Запчасти Case 33 (146) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS, (USED ON BACKHOE SN4157852 AND AFTER

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 226 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (See Figure 134 for different upper boom section plumbing used on 33S backhoes), Incl. Ref. 5

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

D36654

TUBE

- upper valve port to boom cylinder (33 backhoe)

1шт.

7

D40709

TUBE

- upper valve port to bucket cylinder (33 backhoe)

1шт.

8

D40713

- upper valve port to dipper cylinder (33 backhoe)

1шт.

9

D30771

TUBE

- lower valve port to boom cylinder (33 backhoe)

1шт.

10

D40711

TUBE

- lower valve port to bucket cylinder (33 backhoe)

1шт.

11

D40715

TUBE

- lower valve port to dipper cylinder (33 backhoe)

1шт.

12

D36654

TUBE

- upper valve port to boom cylinder (33S backhoe)

1шт.

13

D51313

TUBE - upper valve port to dipper cylinder (33S backhoe)

1шт.

14

D51309

TUBE - upper valve port to bucket cylinder (33S backhoe)

1шт.

15

D36923

TUBE

- lower valve port to boom cylinder (33S backhoe) Before backhoe SN. 4176351

1шт.

15

D51319

TUBE

- lower valve port to boom cylinder (33S backhoe) After backhoe SN. 4176351

1шт.

16

D45519

TUBE

- lower valve port to dipper cylinder (33S backhoe) Before backhoe SN. 4176351

1шт.

16

D51315

TUBE

- lower valve port to dipper cylinder (33S backhoe) After backhoe SN. 4176351

1шт.

17

D45516

TUBE

- lower valve port to bucket cylinder (33S backhoe) Before backhoe SN. 4176351

1шт.

17

D51311

TUBE

- lower valve port to bucket cylinder (33S backhoe) After backhoe SN. 4176351

1шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

19

D20045

PLATE ASSY.

CLAMP - tube

6шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

22

D42601

HOSE ASSY.

HOSE - control valve to manifold (18-1/2" long)

4шт.

23

D44652

MANIFOLD

- hose

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

27

D42635

HOSE

- manifold to bucket cylinder (54" long)

2шт.

28

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - jam

2шт.

29

D42632

PIPE

TUBE - manifold to bucket cylinder, closed end (Before backhoe SN. 4176351)

1шт.

29

D50776

TUBE

- manifold to bucket cylinder, closed end (After backhoe SN. 4176351)

1шт.

30

D42633

TUBE

- manifold to bucket cylinder, rod end (Before backhoe SN. 4176351)

1шт.

30

D52755

TUBE

- manifold to bucket cylinder, rod end (After backhoe SN. 4176351)

1шт.

31

D40236

CLAMP

- tube

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

35

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

36

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

37

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

38

D42290

HOSE

- bucket cylinder (40" long)

2шт.

39

D40655

TUBE

- bucket cylinder, closed end

1шт.

40

D40647

TUBE

- bucket cylinder, rod end

1шт.

41

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 42

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

44

D38648

BLOCK

SPACER - clamp

2шт.

45

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 320 thru 326 for proper cylinder)

1шт.

46

D42634

HOSE

- manifold to dipper cylinder (46" long)

2шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

49

D33316

CLAMP

- hose

2шт.

50

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

51

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

53

D42624

TUBE

- manifold to dipper cylinder, rod end, Includes: Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

55

REF

INSTRUCTION

CYLINDER - hydraulic, dipper (See Figures 314 thru 318 for proper cylinder)

1шт.

56

D38124

HOSE

- control valve to boom cylinder (57" long)

2шт.

57

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 58

1шт.

58

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

59

D42833

CLAMP

- hose

2шт.

60

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

1шт.

61

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

1шт.

62

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

63

D37232

BOOM

TUBE - valve to boom cylinder, rod end

1шт.

64

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight (5/8" str. thread x 3/4" tube) If used, Includes: Ref. 65

1шт.

64

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (3/4" str. thread x 3/4" tube) If used, Incl. Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

65

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

66

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube to cylinder

1шт.

67

D38648

BLOCK

SPACER - clamp

1шт.

68

REF

INSTRUCTION

CYLINDER - hydraulic, boom (See Figures 304 thru 312 for proper cylinders)

1шт.
