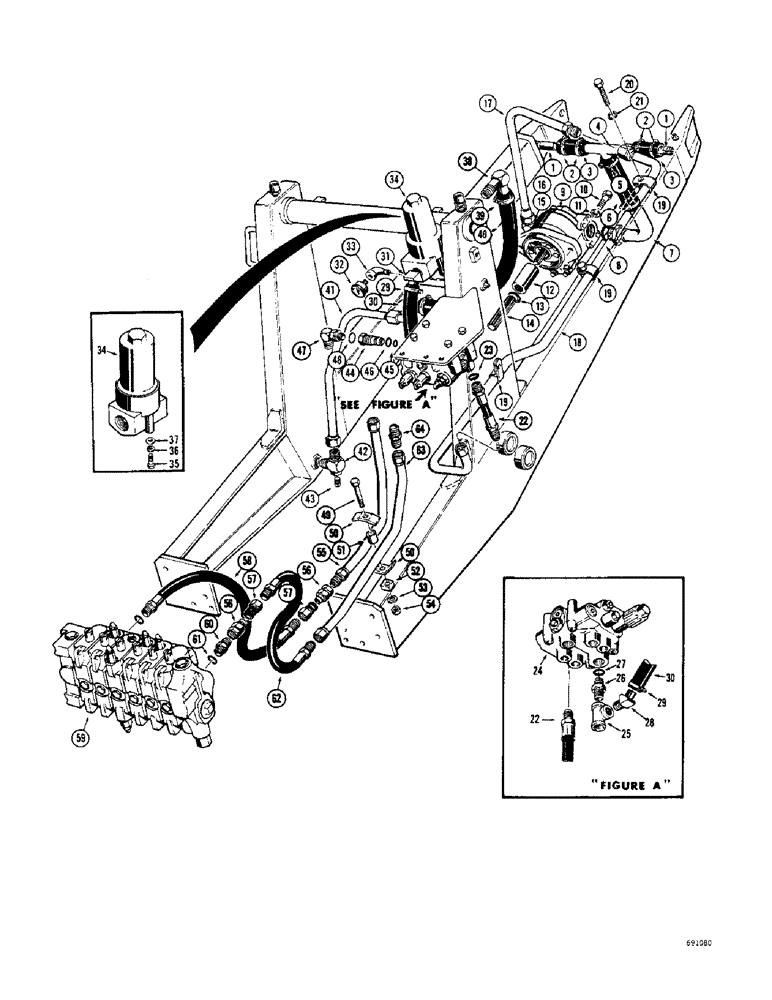

Запчасти Case 33 (126) - BACKHOE PRIMARY HYDRAULICS, USED ON BACKHOE SERIAL NO.4173721 AND AFTER

1

D33363

FITTING

STEM - hose, hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, at reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D41098

TEE

- tube type, Serial Range: reservoir-pump

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D37188

HOSE

- low pressure, at pump (10" long)

1шт.

7

D36747

STEM

- hose, at pump, Includes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

REF

INSTRUCTION

PUMP - hydraulic, equipment (See Figures 204 thru 208 for proper pump)

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump, drive

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

D30563

TUBE ASSY.

TUBE -, Serial Range: pump-valve

1шт.

18

D45575

TUBE -, Serial Range: pump-valve

1шт.

19

R11405

CLAMP

- tube

3шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

3шт.

21

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

22

D45574

HOSE

- pump to valve (9-5/8" long), Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

24

REF

INSTRUCTION

VALVE - loader control (See Figures 214 and 216 for proper valve)

1шт.

25

221-425

FITTING,3/4" NPT

TEE - female

1шт.

26

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

28

R11626

CONNECTOR, ELEC

STEM - hose, 45 degrees

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

30

L43005

HOSE

- low pressure, Serial Range: valve-filter

1шт.

31

D39509

STEM - hose, 45 degrees

1шт.

32

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

33

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

34

D43567

FILTER ASSY

- hydraulic oil (Parts list Figure 160)

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

37

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

38

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - 90 degrees

1шт.

39

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

40

D28238

HOSE

- low pressure, Serial Range: filter-reservoir

1шт.

41

D38627

TUBE

- crossover, at reservoir

1шт.

42

D28485

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

43

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

2шт.

44

D61251

FITTING

CONNECTOR - power beyond, Includes: Ref. 45 and 46

1шт.

45

L32680

RING

SEAL - "O"ring, small

1шт.

46

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

47

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 48 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

48

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

49

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

50

D45576

CLAMP

- tube

2шт.

51

D45740

SPACER - clamp

1шт.

52

D47230

SPACER - block

1шт.

53

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

54

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

1шт.

55

D47805

HOSE

TUBE - to backhoe valve

1шт.

56

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (Parts list Figure 156)

2шт.

57

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (Parts list Figure 156)

2шт.

58

D49117

HOSE

- pressure, 45" long (33 backhoe)

1шт.

58

D49157

HOSE - pressure, 67" long (33S backhoe)

1шт.

59

REF

INSTRUCTION

VALVE - backhoe control (See Figure 226 for proper valve)

1шт.

60

D37325

ADAPTER

CONNECTOR - straight, Includes: Ref. 61

1шт.

61

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

62

D49118

HOSE

- return, 33" long (33 backhoe)

1шт.

62

D49158

HOSE - return, 26" long (33S backhoe)

1шт.

63

D45743

TUBE

- return

1шт.

64

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male

1шт.
