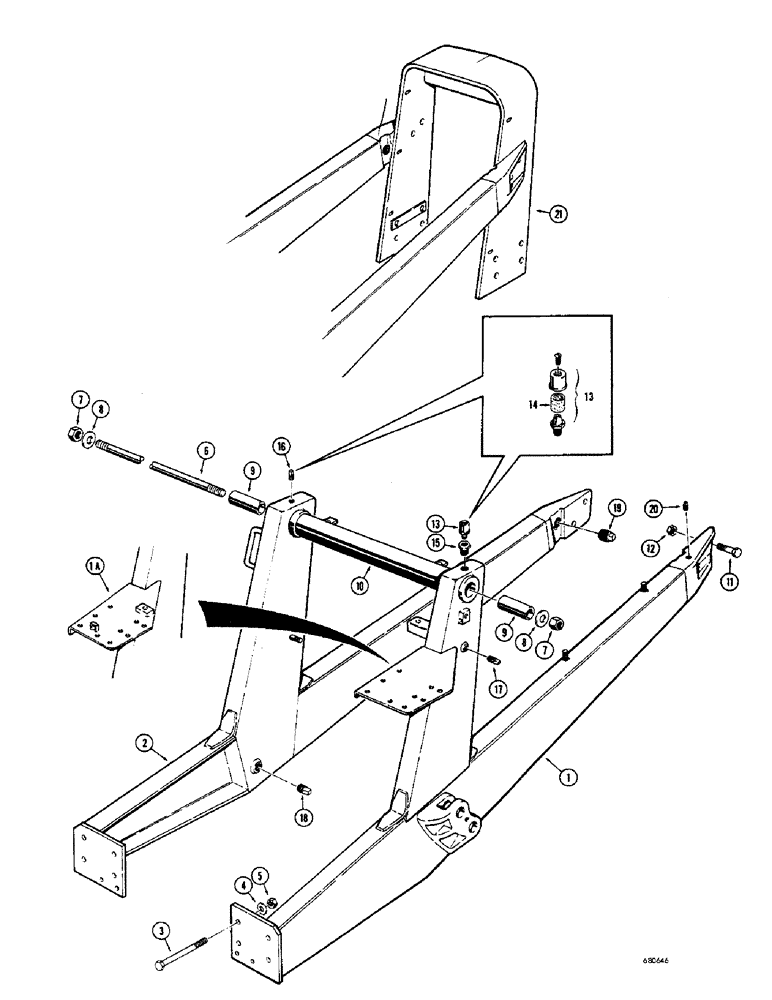

Запчасти Case 33 (006) - LOADER SUBFRAME AND RELATED PARTS, USED BEFORE LOADER SN.4178576

1

D37693

FRAME

SUBFRAME - loader, R.H. (Used before loader serial number 4162797)

1шт.

1a

D43972

FRAME

SUBFRAME - loader, R.H. (Used on loader serial number 4162797 and after)

1шт.

2

D37694

SUBFRAME - loader, L.H.

1шт.

3

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8"

8шт.

4

A28084

WASHER

- special

8шт.

5

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

8шт.

6

D37713

ROD

- tie, subframe

1шт.

7

131-20

LOCK NUT,1"-8, GB

NUT - hex., lock (1" - 8 NC)

2шт.

8

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special

2шт.

9

D37714

SLEEVE

BUSHING - spacer

2шт.

10

D37712

TUBE

- subframe

1шт.

11

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

12

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

13

31543

BREATHER

- hydraulic reservoir, Includes: Ref. 14

1-2шт.

14

T14011

ELEMENT

- breather

1шт.

15

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - pipe (1" NPT x 1/4" NPT)

1шт.

16

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT) If used

1шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head (3/8" NPT)

1шт.

18

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT) If used

1шт.

19

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, square head (1" NPT) If used

1шт.

20

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

21

D38284

GUARD - radiator (Gas models only)

1шт.

D38285

GUARD - radiator (Diesel models only)

1шт.
