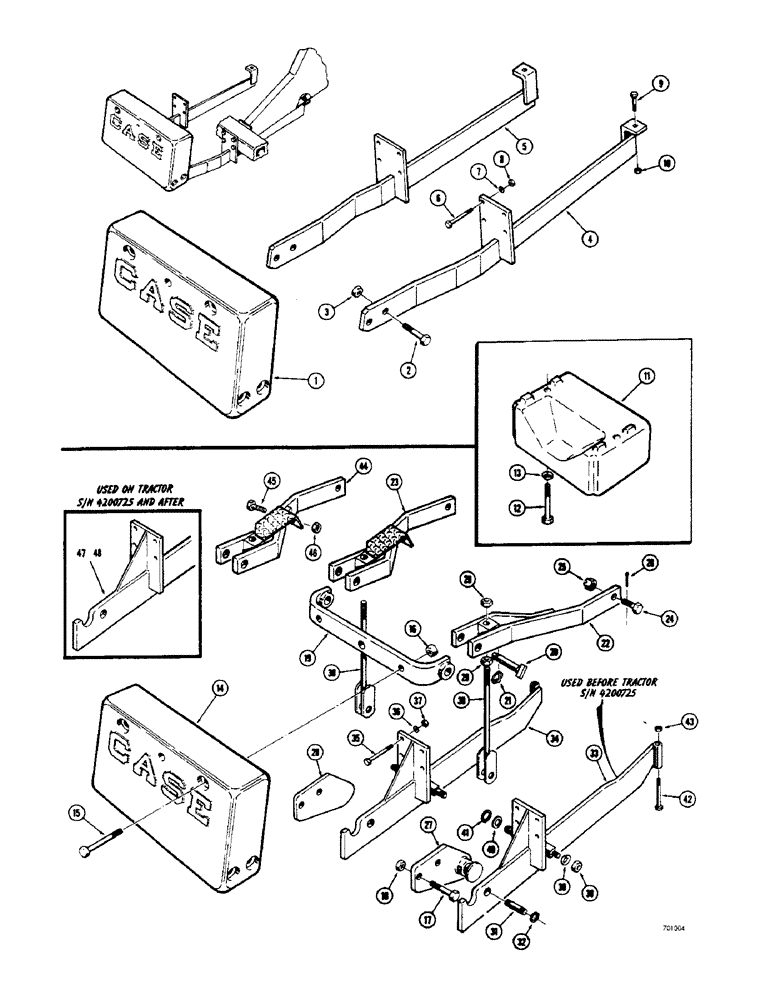

Запчасти Case 33 (054) - COUNTERWEIGHTS, USED ON MODELS WITHOUT BACKHOE OR DRAFT-O-MATIC BEFORE LOADER SN.4200725

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs.

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

hex., lock (1" - 8 NC)

4шт.

4

D33814

ARM - counterweight, R.H.

1шт.

5

D33815

ARM - counterweight, L.H.

1шт.

6

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

7

A28084

WASHER

special

8шт.

8

129-563

NUT,5/8"-11, G8

hex., lock (5/8" - 11 NC)

8шт.

9

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

11

D32736

WEIGHT

COUNTERWEIGHT - front mounted, 580 lbs., used on models w/ backhoe

1шт.

12

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

HHCS - 3/4" - 10 NC x 8-1/2", used on models w/ backhoe

2шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

special, used on models w/ backhoe

2шт.

14

D31204

BALANCER

1400 lbs., quick detachable rear counterweight

1шт.

15

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

Quick detachable rear counterweight Hex, 1"-8 x 10 1/2", G5

2шт.

16

230-41116

NUT,1"-8, GA

hex., lock (1" - 8 NC), quick detachable rear counterweight

2шт.

17

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

Quick detachable rear counterweight Hex, 1"-8 x 6 1/2", G5

4шт.

18

230-41116

NUT,1"-8, GA

hex., lock (1" - 8 NC), quick detachable rear counterweight

4шт.

19

D37534

mounting, quick detachable rear counterweight

1шт.

20

D38697

PIN ASSY.

bracket to upper support arm, quick detachable rear counterweight

2шт.

21

D33805

PIN

KLIK retaining, quick detachable rear counterweight

2шт.

22

D37102

ELBOW

SUPPORT ARM - upper R.H. (When stock is exhausted, order 1 - D41684 bolt for service), quick detachable rear counterweight

1шт.

23

D37101

SUPPORT ARM - upper, L.H. (When stock is exhausted, order 1 - D42065 support arm assembly and 1 - D41684 bolt for service), quick detachable rear counterweight

1шт.

24

D37615

BOLT

special (Used with D37101 and D37102 support arms only), quick detachable rear counterweight

2шт.

D41684

BOLT

special (Used with D42065 and D42066 support arm assembly only), quick detachable rear counterweight

2шт.

25

25-1220

SLOTTED NUT,1 1/4"-12, G5

hex., slotted (1-1/4" - 7 NC), quick detachable rear counterweight

2шт.

26

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Quick detachable rear counterweight 1/4" x 2 1/2"

2шт.

27

D37134

ARM

SUPPORT - lower, at (R.H.), quick detachable rear counterweight

1шт.

28

D37135

ARM

SUPPORT - lower, at (L.H.), quick detachable rear counterweight

1шт.

29

25-1116

NUT,1"-14, G5

hex. (1" - 14 NF), quick detachable rear counterweight

4шт.

30

D38656

ROD

TENSION - upper to lower support arm, quick detachable rear counterweight

2шт.

31

D33816

PIN

tension rod, quick detachable rear counterweight

2шт.

32

D26918

SNAP RING,#125, Ext

Ring, Snap, , quick detachable rear counterweight #125, Ext

4шт.

33

D37619

SUPPORT - lower, R.H. (Used before tractor SN. 4200725), quick detachable rear counterweight

1шт.

34

D37620

SUPPORT - lower, L.H. (Used before tractor SN. 4200725), quick detachable rear counterweight

1шт.

35

113-639

BOLT

HHCS - 5/8" - 11 NC x 8", quick detachable rear counterweight

8шт.

36

A28084

WASHER

special, quick detachable rear counterweight

8шт.

37

129-563

NUT,5/8"-11, G8

hex., lock (5/8" - 11 NC), quick detachable rear counterweight

8шт.

38

25-1010

NUT,5/8"-11, G5

Quick detachable rear counterweight 5/8"-11, G5

2шт.

With D37619 and D37620 lower support arms only.

1шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Quick detachable rear counterweight 5/8"

2шт.

With D37619 and D37620 lower support arms only.

1шт.

40

95-14

WASHER,7/8"

standard wrot (), quick detachable rear counterweight 7/8"

2шт.

With D37619 and D37620 lower support arms only.

1шт.

41

B18206

SNAP RING,#87, Ext

Ring, Snap, , quick detachable rear counterweight #87, Ext

2шт.

With D37619 and D37620 lower support arms only.

1шт.

42

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Quick detachable rear counterweight Hex, 3/4"-10 x 6", G5

2шт.

43

230-41112

LOCK NUT,3/4"-10, GA

hex., lock (3/4" - 10 NC), quick detachable rear counterweight

2шт.

D42065

SUPPORT ASSEMBLY - upper, L.H., quick detachable rear counterweight, Includes: Ref. 44 - 46

1шт.

D42066

SUPPORT ASSEMBLY - upper, R.H., quick detachable rear counterweight, Includes: Ref. 44 - 46

1шт.

44

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, L.H., quick detachable rear counterweight

1шт.

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, R.H. (Not illustrated), quick detachable rear counterweight

1шт.

45

113-652

BOLT

HHCS - 5/8" - 11 NC x 3", quick detachable rear counterweight

2шт.

46

129-563

NUT,5/8"-11, G8

hex., lock (5/8" - 11 NC), quick detachable rear counterweight

2шт.

47

D37094

SUPPORt- lower, R.H. (Used on tractor SN. 4200725 and after), quick detachable rear counterweight

1шт.

48

D37093

SUPPORT - lower, L.H. (Used on tractor SN. 4200725 and after), quick detachable rear counterweight

1шт.
