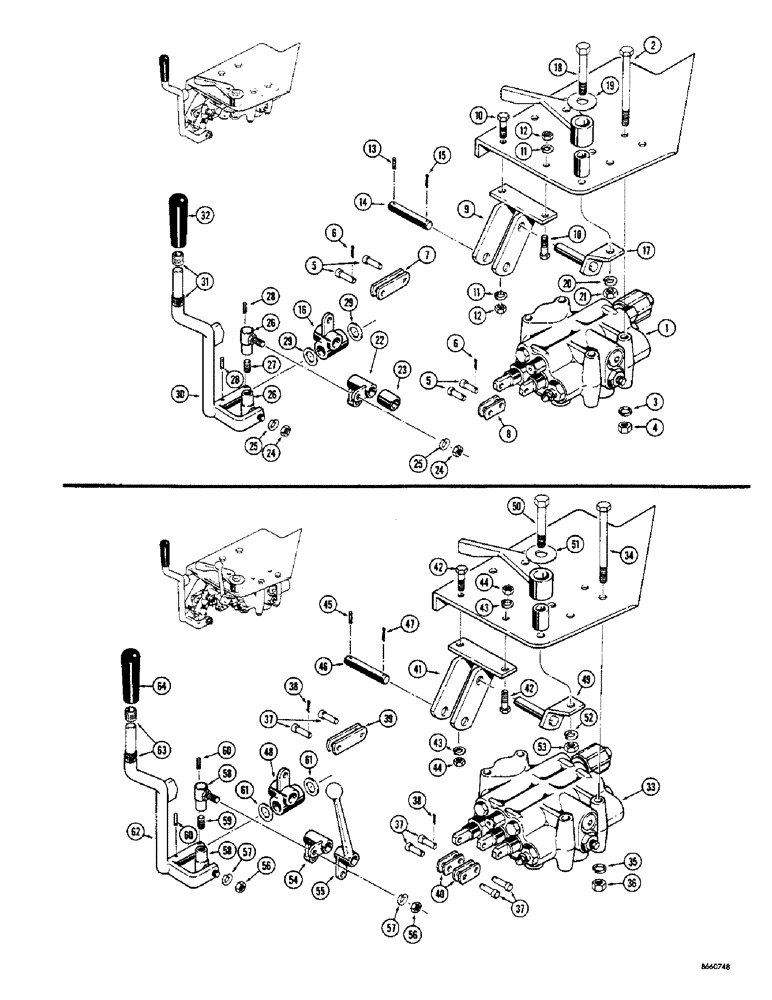

Запчасти Case 33 (046) - LOADER CONTROL VALVES & LINKAGE,(USED BEFORE LOADER SN4162797)USED ON LOADER MODELS W/2 SPOOL VALVES

1

D38573

VALVE - loader control, 2 spool (Parts list Figure 214) When stock is exhausted, order D45040 for service

1шт.

D45040

VALVE

loader control, 2 spool (Parts list Figure 214)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

4шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Valve link 5/16" x .940"

4шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

7

D34624

LINK

valve, long

2шт.

8

D38651

LINK

valve, short

2шт.

9

D37573

BRACKET

lever and linkage mounting

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

13

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

14

D37553

PIN

pivot, Serial Range: lever-bracket

1шт.

15

132-48

COTTER PIN,1/8" x 1"

med. sect. lock, 1/8" x 1"

1шт.

16

D37575

LEVER

pivot, loader lift section

1шт.

17

D37552

PIN

BRACKET - linkage mounting

1шт.

18

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

19

95-6

WASHER,3/8"

- standard wrot 3/8"

1шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

22

D37574

CRANK

LEVER - pivot, loader dump section

1шт.

23

D37548

SLEEVE

SPACER - lever

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

hex. (3/8" - 24 NF)

2шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

26

D38296

JOINT

ball

2шт.

27

D37549

STUD

joint

1шт.

28

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

29

A26411

WASHER

special

1шт.

30

D37576

loader control, lift and dump

1шт.

31

D38662

RING

tolerance, knob locking

2шт.

32

D37550

KNOB

control lever

1шт.

33

D38572

VALVE - loader control, 3 spool (Parts list Figure 216) When stock is exhausted, order D45045 for service

1шт.

D45045

VALVE

loader control, 3 spool (Parts list Figure 216)

1шт.

34

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Used on loader models w/ 3 spool valve Hex, 3/8"-16 x 4", G5

4шт.

35

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), used on loader models w/ 3 spool valve

4шт.

37

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Valve link, Used on loader models w/ 3 spool valve 5/16" x .940"

6шт.

38

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Used on loader models w/ 3 spool valve 3/32" x 5/8"

6шт.

39

D34624

LINK

valve, long, used on loader models w/ 3 spool valve

2шт.

40

D38651

LINK

valve, short, used on loader models w/ 3 spool valve

4шт.

41

D37573

BRACKET

lever and linkage mounting, used on loader models w/ 3 spool valve

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on loader models w/ 3 spool valve Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), used on loader models w/ 3 spool valve

2шт.

45

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on loader models w/ 3 spool valve 1/8" x 1", Slotted

1шт.

46

D37553

PIN

pivot lever to bracket, used on loader models w/ 3 spool valve

1шт.

47

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Used on loader models w/ 3 spool valve 1/8" x 1"

1шт.

48

D37575

LEVER

pivot, loader lift section, used on loader models w/ 3 spool valve

1шт.

49

D37552

PIN

BRACKET - linkage mounting, used on loader models w/ 3 spool valve

1шт.

50

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", used on loader models w/ 3 spool valve

1шт.

51

95-6

WASHER,3/8"

- standard wrot, used on loader models w/ 3 spool valve 3/8"

1шт.

52

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), used on loader models w/ 3 spool valve

1шт.

54

D37574

CRANK

LEVER - pivot, loader dump section, used on loader models w/ 3 spool valve

1шт.

55

D38640

LEVER

loader control, clam, used on loader models w/ 3 spool valve

1шт.

56

25-116

NUT,Hex, 3/8"-24, G5

hex. (3/8" - 24 NF), used on loader models w/ 3 spool valve

2шт.

57

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

2шт.

58

D38296

JOINT

ball, used on loader models w/ 3 spool valve

2шт.

59

D37549

STUD

joint, used on loader models w/ 3 spool valve

1шт.

60

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on loader models w/ 3 spool valve 1/8" x 1", Slotted

2шт.

61

A26411

WASHER

special, used on loader models w/ 3 spool valve

1шт.

62

D37576

loader control, lift and dump, used on loader models w/ 3 spool valve

1шт.

63

D38662

RING

tolerance, knob locking, used on loader models w/ 3 spool valve

2шт.

64

D37550

KNOB

control lever, used on loader models w/ 3 spool valve

1шт.
