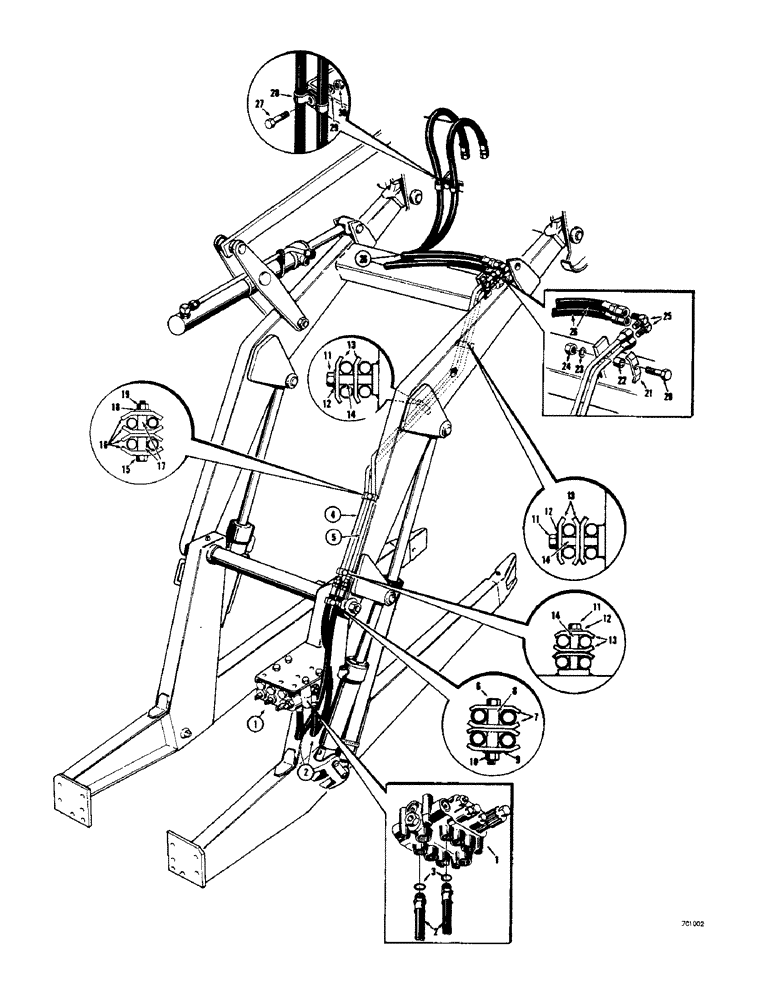

Запчасти Case 33 (044) - OPTIONAL LOADER HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - loader control (See Figures 214 and 216 for proper valve)
1шт.
2
D34399
HOSE
valve to clam or grapple cylinder (38-1/2" long), Includes: Ref. 3
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
4
D34405
TUBE
valve to clam or grapple cylinder, closed end
1шт.
5
D34403
TUBE
valve to clam or grapple cylinder, rod end
1шт.
6
13-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
HHCS - 5/16" - 18 NC x 3-1/4"
1шт.
7
D33316
CLAMP
hose
2шт.
8
D33554
BUSHING
SPACER - clamp
1шт.
9
195-21
WASHER,5/16"
- plain () 5/16"
1шт.
10
131-4
LOCK NUT,5/16"-18, GB
hex., lock (5/16" - 18 NC)
1шт.
11
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
3шт.
12
92-5
LOCK WASHER,5/16"
med sect. 5/16"
3шт.
13
R17319
CLAMP
tube
6шт.
14
D33551
BUSHING
SPACER - clamp
3шт.
15
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
1шт.
16
R17319
CLAMP
tube
4шт.
17
D33551
BUSHING
SPACER - clamp
2шт.
18
195-21
WASHER,5/16"
- plain () 5/16"
1шт.
19
131-4
LOCK NUT,5/16"-18, GB
hex., lock (5/16" - 18 NC)
1шт.
20
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
21
R17319
CLAMP
tube
1шт.
22
D33551
BUSHING
SPACER - clamp
1шт.
23
195-21
WASHER,5/16"
- plain () 5/16"
1шт.
24
131-4
LOCK NUT,5/16"-18, GB
hex., lock (5/16" - 18 NC)
1шт.
25
218-474
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC
male 90º, 3/4"-16, 37º x 3/4"-16, 37º
2шт.
26
D34401
HOSE ASSY.
valve to cylinder (60" long) Used with grapple or D34409 Drott 4-in-1 bucket
2шт.
26
D51691
HOSE
valve to cylinder (40" long) Used with D51347 4-in-1 bucket only
2шт.
27
13-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
HHCS - 5/16" - 18 NC x 1-3/4", Used with D34409 Drott 4-in-1 bucket
1шт.
28
49855
CLAMP
hose, Used with D34409 Drott 4-in-1 bucket
2шт.
29
195-21
WASHER,5/16"
- plain (), Used with D34409 Drott 4-in-1 bucket 5/16"
1шт.
30
131-4
LOCK NUT,5/16"-18, GB
hex., lock (5/16" - 18 NC), Used with D34409 Drott 4-in-1 bucket
1шт.
Выбрано товаров: 31
