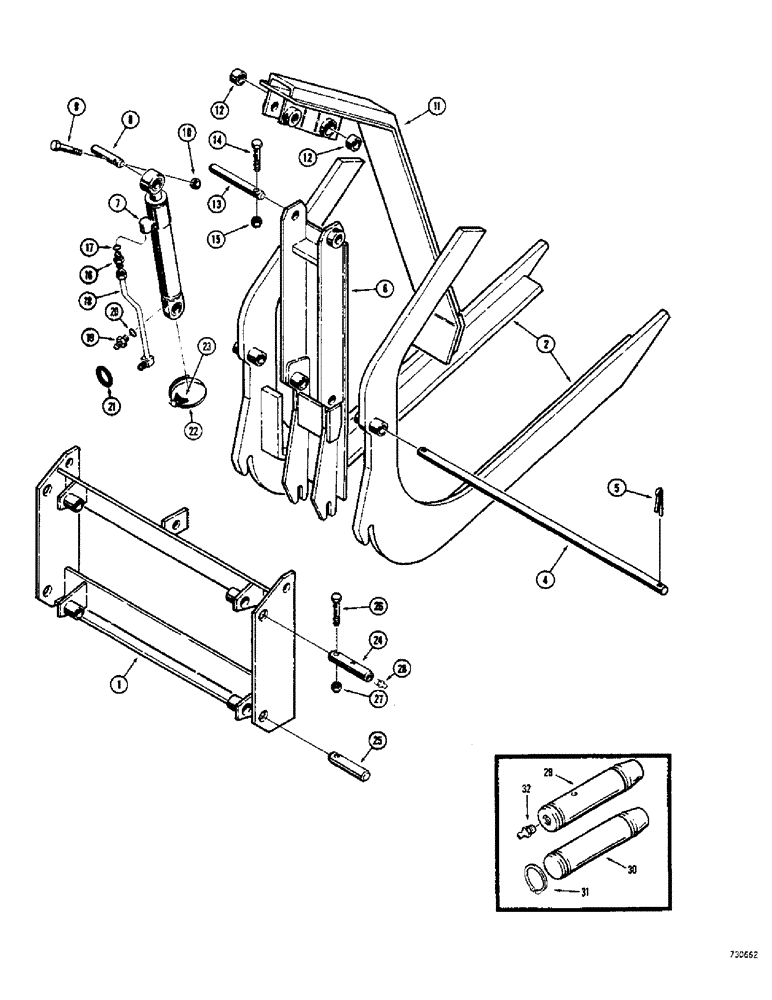

Запчасти Case 33 (032) - GRAPPLE ATTACHMENT, USED WITH LOGGING OR PALLET FORKS

1

D48013

pallet and logging fork (Used with bolt type retaining pins) Service with D30953 frame and D14955 pin kit

1шт.

1

D30953

pallet and logging fork (Used with snap ring type retaining pins)

1шт.

2

D43124

FORK TEDDER

logging

2шт.

3

D47999

FORK

pallet (Not illustrated)

2шт.

4

D21656

SHAFT

fork and grapple mounting

1шт.

5

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

6

D46133

grapple

1шт.

7

REF

INSTRUCTION

CYLINDER - hydraulic, grapple (See Figures 278 and 280 for proper cylinder)

1шт.

8

D46141

PIN,31.75mm OD x 101.6mm L

cylinder mounting, upper

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

10

131-352

LOCK NUT,3/8"-16, GA

hex. (3/8" - 16 NC)

1шт.

11

D46114

grapple, Includes: Ref. 12

1шт.

12

D32890

BUSHING

arm

2шт.

13

D46142

mounting, Serial Range: arm-frame

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

15

131-352

LOCK NUT,3/8"-16, GA

hex., lock (3/8" - 16 NC)

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 17 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL -

1шт.

18

D48028

hose to cylinder, rod end

1шт.

19

D48030

CONNECTOR, ELEC

special (Restrictor), Includes: Ref. 20

1шт.

21

D48031

hose

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

tube to cylinder

1шт.

23

D38648

BLOCK

SADDLE - tube

1шт.

D14600

mounting (Machinery item), D14600 pin kit - D48013 frame, Includes: Ref. 24 - 28

1шт.

24

D50187

PIN

mounting, upper, D14600 pin kit - D48013 frame

2шт.

25

D50188

PIN

mounting, lower, D14600 pin kit - D48013 frame

2шт.

26

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

HHCS - 3/8" - 16 NC x 2-3/4" (Grade 8), D14600 pin kit - D48013 frame

4шт.

27

131-352

LOCK NUT,3/8"-16, GA

hex., lock (3/8" - 16 NC), D14600 pin kit - D48013 frame

4шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), D14600 pin kit - D48013 frame

2шт.

D14955

KIT

mounting (Machinery item), D14955 pin - D30953 frame, Includes: Ref. 29 - 32

1шт.

29

D37287

PIN

mounting, upper, D14955 kit - D30953 frame

2шт.

30

NLS

NO LONGER SERVICED

mounting, lower, D14955 pin kit - D30953 frame

2шт.

31

D25279

SNAP RING,M35, Int

retaining, D14955 pin kit - D30953 frame

8шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease (1/8" NPT), D14955 pin kit - D30953 frame

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL -

1шт.
