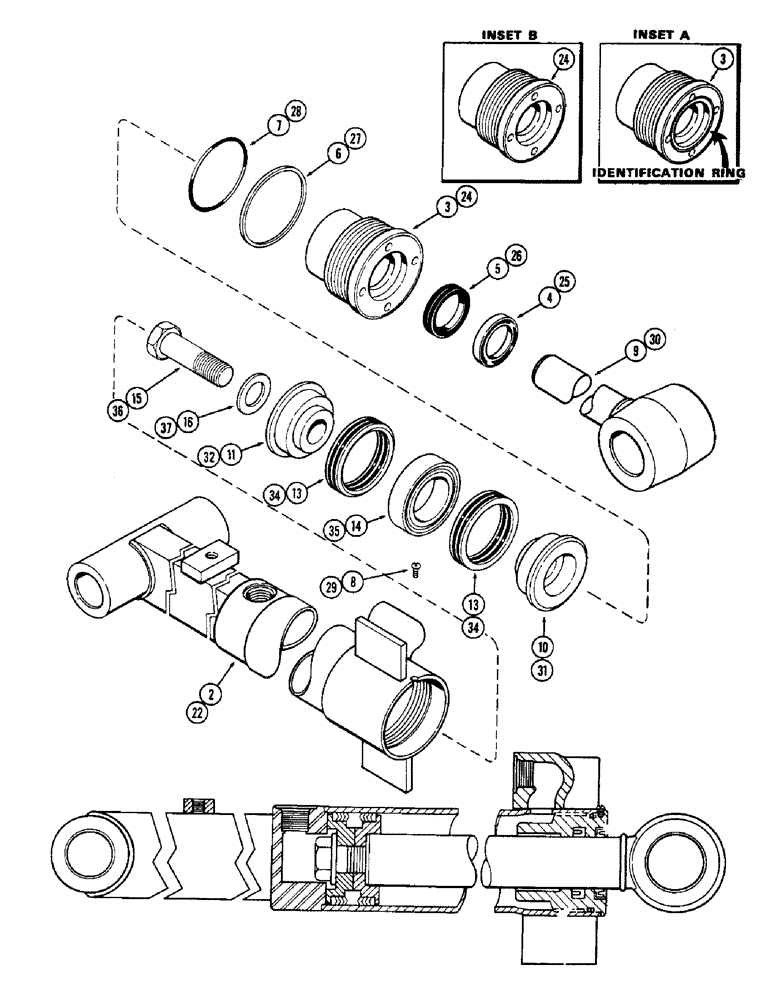

Запчасти Case 33 (334) - G33142 BACKHOE DIPPER EXT CYL,3"DIA. CYL W/48"STROKE W/GLAND ID RING USED W/4 DIPPER EXT.

G33142

BOOM

CYLINDER ASSY. - dipper extension, Includes: Ref. 2 - 16

1шт.

2

G32699

TUBE,72.80 mm L

- cylinder body

1шт.

G33189

GLAND

ASSY. - w/bushing, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See inset A)

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G33188

1шт.

5

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of seal kit P/N G33188

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O"ring back-up

1шт.

Part of seal kit P/N G33188

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G33188

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

9

G33143

PISTON ROD

ROD - piston (1-1/2" dia.) (w/identification ring)

1шт.

Rod - piston 54.94 "

1шт.

10

G33150

PISTON

- split (Rod end) (w/identification ring)

1шт.

11

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 13 and 14

1шт.

Part of seal kit P/N G33188

1шт.

13

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

14

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G33188

SEAL

KIT - cylinder repair, Includes Refs.4, 5, 6, 7, G33151, 25, 26, 27, 28 and G33151

1шт.

G32637

CYLINDER ASSY. - dipper extension (Order G33142), Includes: Ref. 22 - 37

1шт.

22

G32699

TUBE,72.80 mm L

- cylinder body

1шт.

G32734

GLAND

ASSY. - w/bushing, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

GLAND - (w/out identification ring) (See inset B)

1шт.

25

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer(1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G33188

1шт.

26

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

27

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

28

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

29

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

30

G32706

ROD

- piston (1-1/2" dia.) (w/o identification ring)

1шт.

31

D28365

PISTON

- split (Rod end) (w/o identification ring)

1шт.

32

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

35

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

36

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

37

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G33188

SEAL

KIT - cylinder repair, Includes Refs. 4, 5, 6, 7, G33151, 25, 26, 27, 28 and G33151

1шт.
