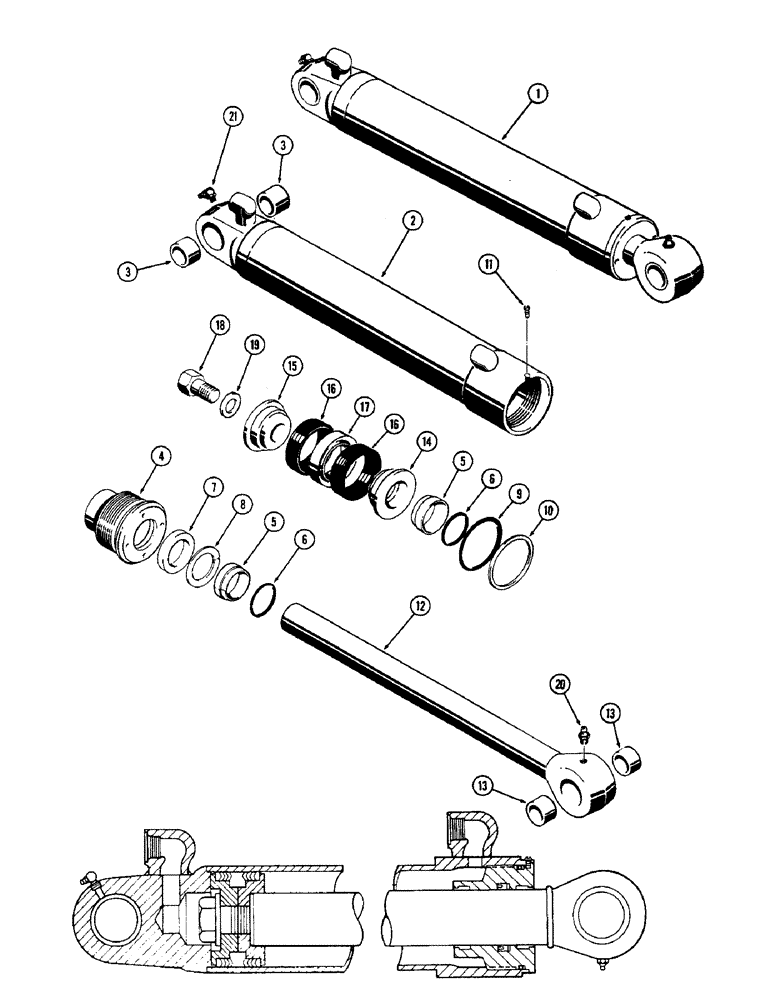

Запчасти Case 33 (314) - D37623 & D42626 DIPPER CYL,4"DIA CYL W/35-1/8"STROKE W/SPLIT TYPE INNER&OUTER WIPER W/OGLAND ID RING

1

D37623

CYLINDER ASSY. - (w/1-1/16"-12 N.F. front port) (Order 1-G32593 cyl.) (Figure 318) & 1-D42624 tube), Includes: Ref. 2 - 21

1шт.

1

D42626

CYLINDER ASSY. - (w/7/8"-14 N.F. front port) (Order 1-G32593 cylinder) (See Figure 318), Includes: Ref. 2 - 21

1шт.

2

D43110

TUBE ASSY. - (Used w/D37623 cylinder) (Order 1-G32713 tube) (Figure 318) & 1-D42624 tube), Includes: Ref. 3

1шт.

2

D43298

TUBE

ASSY. - (Used w/D42626 cylinder) (Order 1-G32713 tube) (See Figure 318), Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D45071

GLAND

- (Order 1-G32737 gland) (See Figure 318)

1шт.

D42876

GLAND

PACKING KIT - gland (Replaces D37358 & D41401), Includes: Ref. 5 - 11

1шт.

5

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (Split type)

2шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper (2-1/8 x 2-3/8 x 1/8")

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston seal back-up

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

10

D27382

RING

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D37728

ROD

ASSY - piston (2" dia.) (w/o identification ring), Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

D28371

PISTON

- split (Rod end) (w/o identification ring)

1шт.

15

D28370

PISTON

- split (Bolt end)

1шт.

16

D43112

PACKING

ASSY. - piston ("V" type)

2шт.

17

D43113

PACKAGE

RING - center bearing

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

19

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
