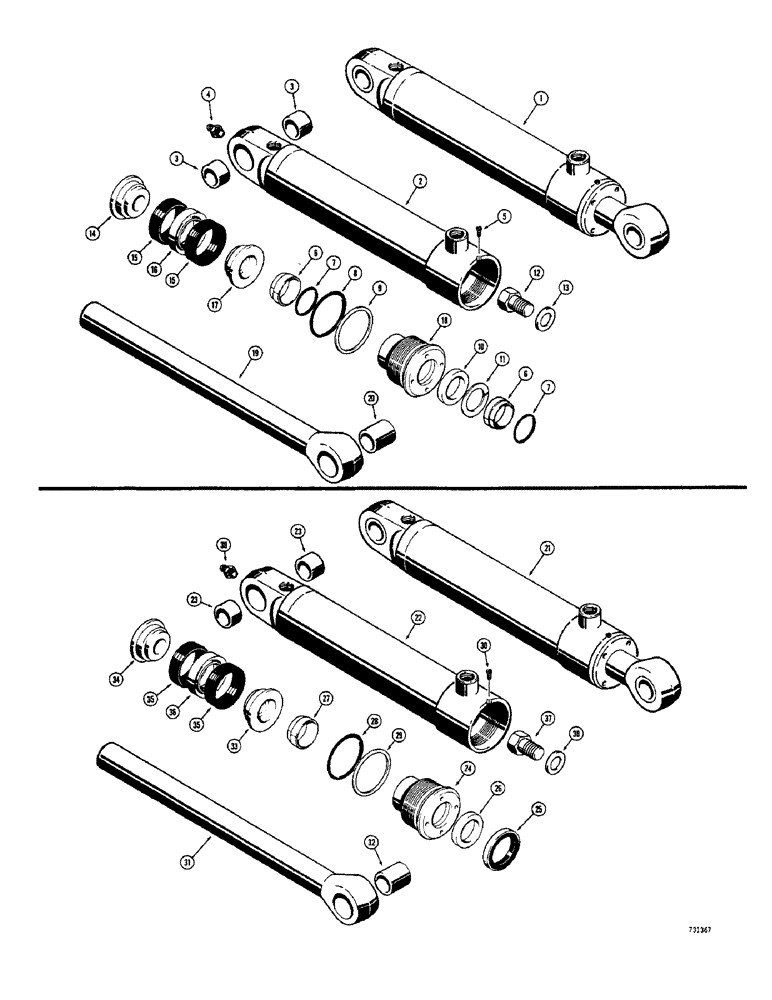

Запчасти Case 33 (288) - BACKHOE STABILIZER CYLINDERS, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D35683

CYLINDER ASSY.

CYLINDER - stabilizer (3-1/2" I.D. x 11-1/2" stroke), Includes: Ref. 2 - 20

2шт.

2

D36680

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end half

1шт.

15

D42808

PACKAGE,SERVICE

PACKING - piston, chevron

2шт.

16

D43545

RING

- metal, piston packing

1шт.

17

D28369

PISTON

- split, rod end half

1шт.

18

D45069

GLAND

- packing

1шт.

19

D36684

ROD ASSY.

ROD - piston (1-3/4" dia.), Includes: Ref. 20

1шт.

20

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.

21

G32173

CYLINDER

ASSY. - stabilizer, cyl w/ u-type press-in outer rod wiper, Includes: Ref. 22 - 39

2шт.

22

D36680

TUBE

ASSY. - body, cyl w/ u-type press-in outer rod wiper, Includes: Ref. 23

1шт.

23

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube, cyl w/ u-type press-in outer rod wiper

2шт.

G32743

GLAND

ASSY., cyl w/ u-type press-in outer rod wiper, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

GLAND, cyl w/ u-type press-in outer rod wiper

1шт.

25

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

piston rod, (1-3/4 x 2-1/4 x 5/16"), cyl w/ u-type press-in outer rod wiper

1шт.

26

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), cyl w/ u-type press-in outer rod wiper

1шт.

27

D27432

SHIM

piston rod, inner (Split type), cyl w/ u-type press-in outer rod wiper

1шт.

28

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), cyl w/ u-type press-in outer rod wiper

1шт.

29

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

gland "O" ring back-up, cyl w/ u-type press-in outer rod wiper

1шт.

30

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), cyl w/ u-type press-in outer rod wiper

1шт.

31

D36684

ROD ASSY.

ASSY. - piston (1-3/4" dia.), cyl w/ u-type press-in outer rod wiper, Includes: Ref. 32

1шт.

32

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston , cyl w/ u-type press-in outer rod wiper

1шт.

33

D28369

PISTON

- split (Rod end), cyl w/ u-type press-in outer rod wiper

1шт.

34

D28367

PISTON

- split (Bolt end), cyl w/ u-type press-in outer rod wiper

1шт.

35

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type), cyl w/ u-type press-in outer rod wiper

2шт.

36

D47208

RING

- center bearing, cyl w/ u-type press-in outer rod wiper

1шт.

37

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, Cyl w/ u-type press-in outer rod wiper Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

38

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64"), cyl w/ u-type press-in outer rod wiper

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), cyl w/ u-type press-in outer rod wiper

1шт.
