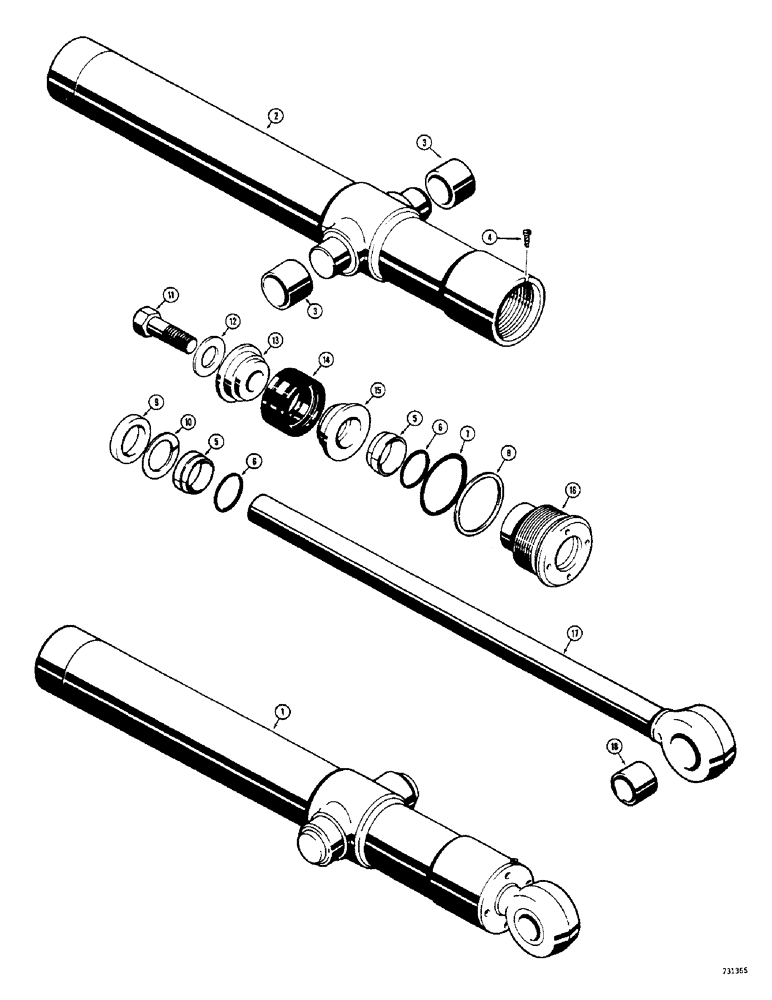

Запчасти Case 33 (270) - LOADER TILT CYLINDERS, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D31100

HYDRAULIC CYLINDER

CYLINDER - tilt, R.H. (2-1/2" I.D. x 20" stroke), Includes: Ref. 2 - 18

1шт.

1

D31101

CYLINDER ASSY.

CYLINDER - tilt, L.H. (2-1/2" I.D. x 20" stroke), Includes: Ref. 2 - 18

1шт.

2

D31098

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

2

D31099

TUBE

- cylinder, L.H., Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27706

WIPER SEAL

WIPER - rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D27856

RING

- backup, gland seal

1шт.

9

D36969

CUP

SEAL - rod

1шт.

10

D28498

RING

- backup, rod seal

1шт.

11

D29306

BOLT

- special

1шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

13

D28364

PISTON

- split, bolt end half

1шт.

14

D28373

PACKING

- piston

1шт.

15

D28363

PISTON

- split, rod end half

1шт.

16

D45066

GLAND

- packing

1шт.

17

D32146

ROD

- piston (1-1/2" dia.), Includes: Ref. 18

1шт.

18

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.
