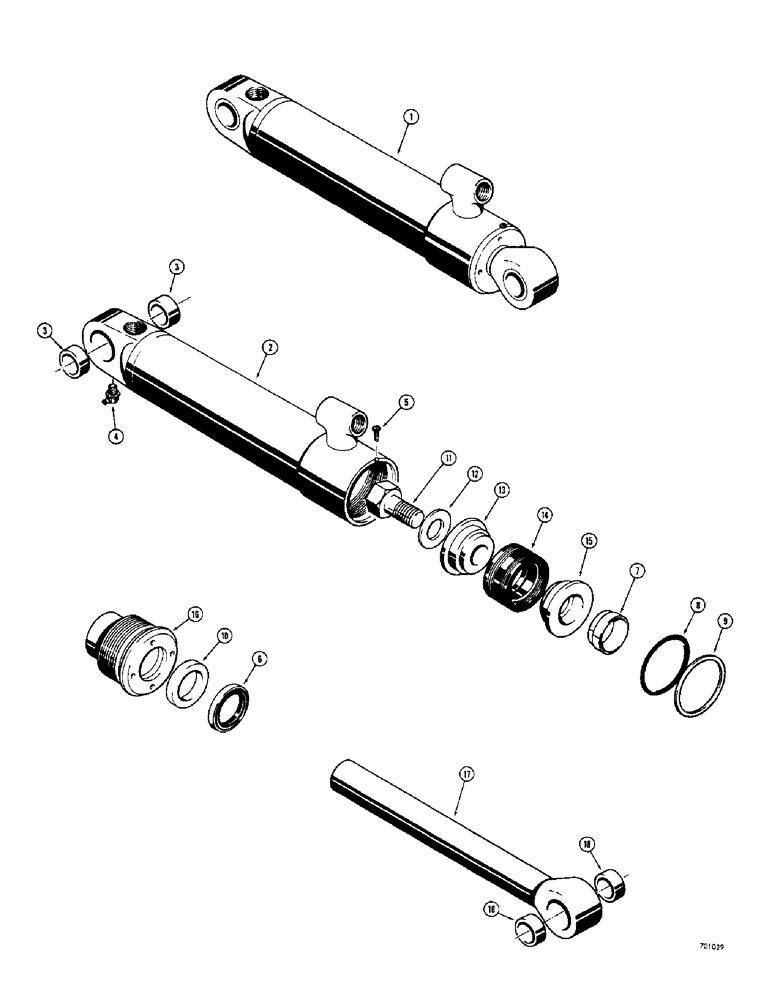

Запчасти Case 33 (266) - LOADER HYDRA-LEVELING CYLINDER, CYLINDER WITH U-TYPE PRESS IN OUTER ROD WIPER

1

G32167

CYLINDER

- hydra-leveling (3" I.D. x 9-15/16" stroke) Used for service before loader serial no. 4178576 only, Includes: Ref. 2 - 18

1шт.

1

G32135

CYLINDER

- hydra-leveling (3" I.D. x 9-15/16" stroke) Used on loader serial no. 4178576 and after, Includes: Ref. 2 - 18

1шт.

2

D36883

TUBE - G32167 cylinder, Includes: Ref. 3

1шт.

2

D48612

BODY

TUBE - G32135 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube (G32167 cylinder only)

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

7

D27432

SHIM

- rod, inner

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D32861

BOLT

- special

1шт.

12

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

13

D28896

PISTON

- split, bolt end half

1шт.

14

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

15

D28897

PISTON

- split, rod end half

1шт.

16

G32115

GLAND

- packing

1шт.

17

D46945

ROD ASSY.

ROD - piston (1-3/4" dia.), Includes: Ref. 18

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod

2шт.
