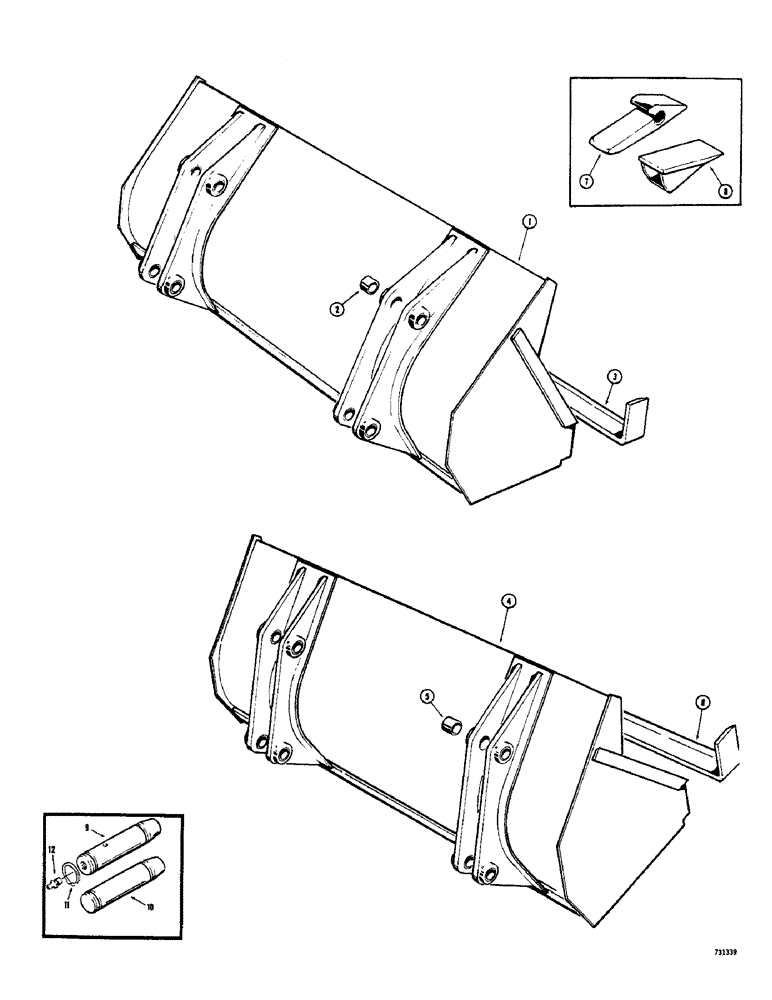

Запчасти Case 33 (022) - LOADER BUCKETS (MACHINERY ITEM), USED ON PRODUCTION MODELS OR AS SERVICE REPLACMENT ON PRIOR
№
Артикул
Название
Примечание
Количество
D54094
BUCKET ASSEMBLY - loader, short lip (74" wide x 21 cu. ft. heaped capacity), Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader
1шт.
2
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
bucket ear
4шт.
3
D95072
EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk
bucket
1шт.
D54090
BUCKET ASSEMBLY - loader, short lip (80" wide x 23 cu. ft. heaped capacity), Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET - loader
1шт.
2
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
bracket ear
4шт.
3
D95073
EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk
bucket
1шт.
D54091
BUCKET ASSEMBLY - loader, long lip (64" wide x 20 cu. ft. heaped capacity), Includes: Ref. 4 - 6
1шт.
4
NSS
NOT SOLD SEPARAT
BUCKET - loader, long lip
1шт.
5
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
bucket ear, long lip
4шт.
6
D95071
EDGE, CUTTING
bucket, long lip
1шт.
D54093
BUCKET ASSEMBLY - loader, long lip (74" wide x 23 cu. ft. heaped capacity), Includes: Ref. 4 - 6
1шт.
4
NSS
NOT SOLD SEPARAT
BUCKET - loader, long lip
1шт.
5
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
bucket ear, long lip
4шт.
6
D95072
EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk
bucket, long lip
1шт.
D54092
BUCKET ASSEMBLY - loader, long lip (80" wide x 25 cu. ft. heaped capacity), Includes: Ref. 4 - 6
1шт.
4
NSS
NOT SOLD SEPARAT
BUCKET - loader, long lip
1шт.
5
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
bucket ear, long lip
4шт.
6
D95073
EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk
bucket, long lip
1шт.
7
D26368
SUPPORT
SHANK - teeth optional (on all except 80" buckets)
8-9шт.
8
D58576
TOOTH
POINT - (H and L Manufactured) 4-7/8" long, optional (on all except 80" buckets)
8-9шт.
8
D58577
TOOTH
POINT - (American Steel Manufactured) 4-3/4" long, optional (on all except 80" buckets)
8-9шт.
D14955
KIT
bucket pin (Machinery item), Includes: Ref. 9 and 10
1шт.
9
D37287
PIN
bucket, upper, D14955 kit
2шт.
10
NLS
NO LONGER SERVICED
- lower, D14955 pin kit
2шт.
11
D25279
SNAP RING,M35, Int
D14955 pin kit
8шт.
12
219-11
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - straight, grease (1/8" NPT), D14955 pin kit
2шт.
Выбрано товаров: 28
