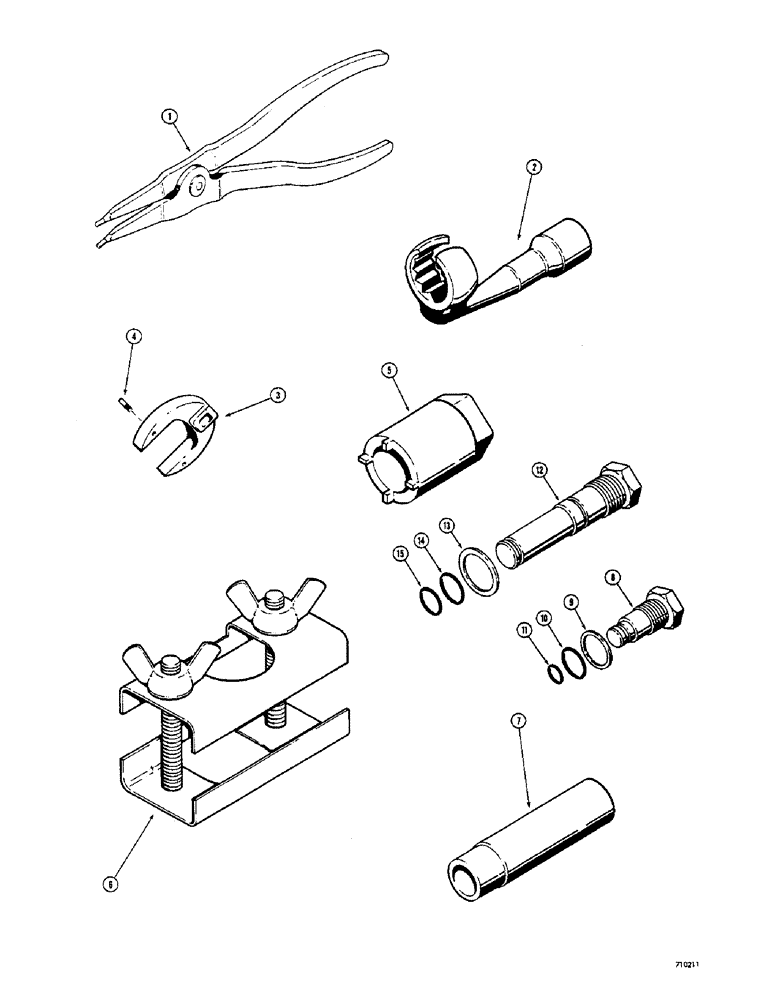

Запчасти Case 33 (244) - TOOLS

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crowfoot, 1/2" drive (For 1" nut), Includes: Ref. 3 and 4

1шт.

2

D27216

TOOL

WRENCH - crowfoot, 1/2" drive (For 1-1/16" nut), Includes: Ref. 3 and 4

1шт.

2

D48865

TOOL

WRENCH - crowfoot, 1/2" drive (For 1-1/8" nut), Includes: Ref. 3 and 4

1шт.

2

D28774

TOOL ASSY.

WRENCH - crowfoot, 1/2" drive (For 1-1/4" nut), Includes: Ref. 3 and 4

1шт.

D44110

OPEN END WRENCH

WRENCH SET - spanner (For removing and installing packing glands in threaded gland type hydraulic cylinders)

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" dia. piston rods

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinders with 1-1/2" dia. piston rod

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-3/4" dia. piston rod

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, 3-1/2" I.D. cylinder with 1-3/4" or 2" dia. piston rods

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, 4" I.D. cylinder with 2" or 2-1/4" dia. piston rod

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, 4-1/2" or 5" I.D. cylinder with 2-1/4" dia. piston rod

1шт.

4

D30107

PIN

- spanner wrench (Used with all wrenches except D44116)

3шт.

D44118

SPARE PART

PIN - spanner wrench, D44116 wrench only

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader and dozer control valves, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

6

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

7

NSS

NOT SOLD SEPARAT

TOOL - snap ring installing

1шт.

D51512

PLUG

ASSEMBLY - test, backhoe control valve (Used in place of secondary relief cartridge), Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - test

1шт.

9

D31450

WASHER

GASKET - plug

1шт.

10

D26872

O-RING

SEAL - "O"ring, large

1шт.

11

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, small, Includes Ref 12 - 15

1шт.

D51534

PLUG

ASSEMBLY - test, backhoe control valve (Used in place of swing crossover relief cartridges)

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG - test

1шт.

13

D26870

GASKET

- plug

1шт.

14

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

15

D31412

O-RING

SEAL - "O"ring, small

1шт.
