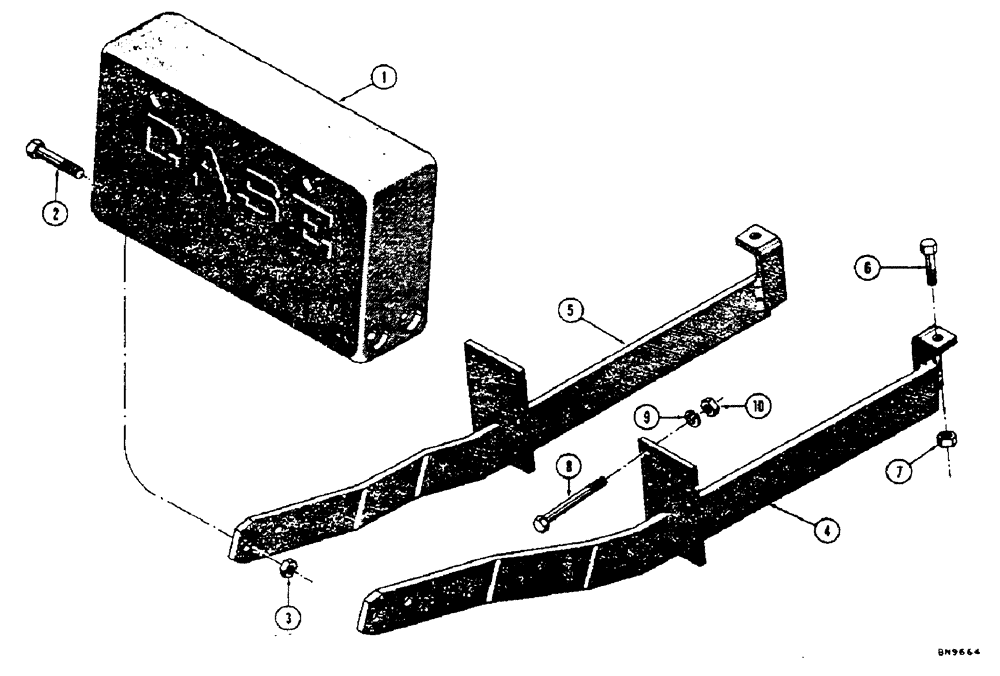

Запчасти Case 32 (014[1]) - 1400 LB. COUNTERWEIGHT (HIGH CLEARANCE)

1

D31204

BALANCER

COUNTERWEIGHT - 1400 lb.

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

4

D33815

SPARE PART ARM - support, R.H.

1шт.

5

D33814

SPARE PART ARM - support, L.H.

1шт.

6

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

9

192-165

LOCK WASHER,5/8"

8шт.

10

86625068

NUT,5/8"-11, G8

NUT - hex., 5/8" - 11 NC

8шт.
