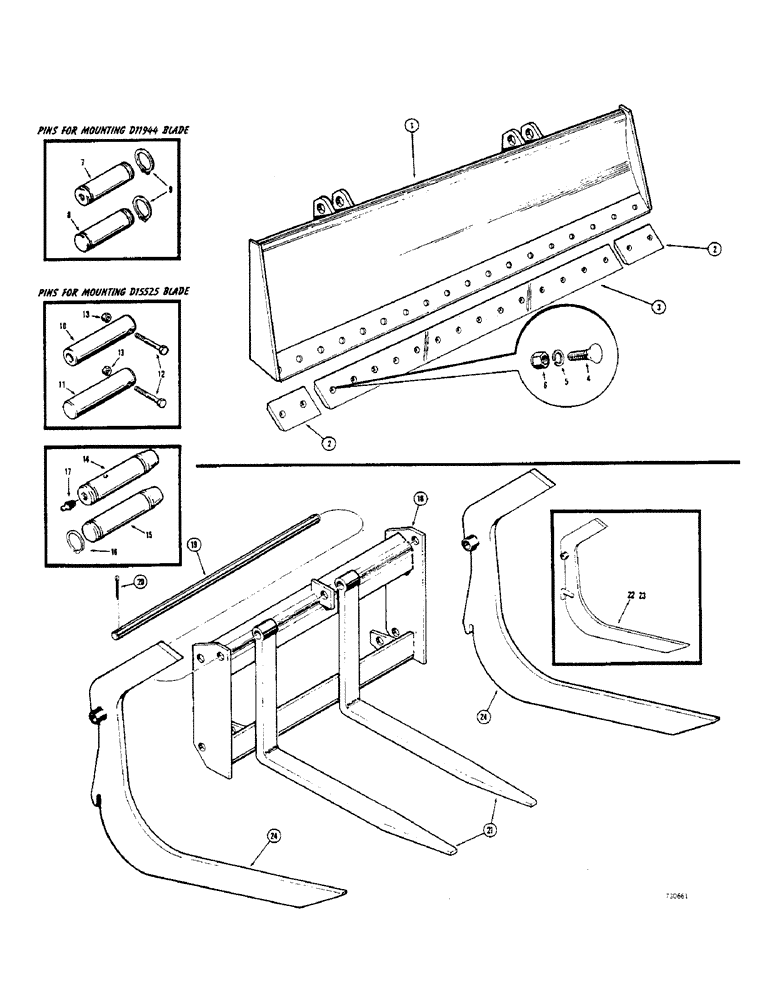

Запчасти Case 32 (012) - LOADER DOZING BLADE

D11944

DOZING BLADE - loader (Machinery item) Used with snap type retaining pins, Includes: Ref. 1 - 6

1шт.

D15525

DOZING BLADE - loader (Machinery item) Used with bolt type retaining pins (Use D11944 blade and D14955 kit for service), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - loader

1шт.

2

38150

EDGE

CUTTING - end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING - center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

plow, 1/2" - 13 NC x 1-3/4"

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC)

18шт.

7

D31001

PIN

mounting, dozing blade (Upper), D11944

2шт.

8

D37606

PIN,38.1mm OD x 103.5mm L

mounting, dozing blade (Lower), D11944

2шт.

9

D25279

SNAP RING,M35, Int

pin retaining, mounting blade D11944

8шт.

D14600

KIT - bucket pin (Machinery item), Includes: Ref. 10 - 13

1шт.

10

D50187

PIN

dozing (Upper), D14600 kit for mounting D15525 blade or D48013 frame

2шт.

11

D50188

PIN

mounting, dozing (Lower), D14600 kit for mounting D15525 blade or D48013 frame

2шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4", D14600 pin kit for mounting D15525 blade or D48013 frame

4шт.

13

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), D14600 pin kit for mounting D15525 blade or D48013 frame

4шт.

D14955

KIT

(Machinery item), D14955 pin for mounting D30953 frame, Includes: Ref. 14 - 17

1шт.

14

D37287

PIN

upper, D14955 kit for mounting D30953 frame

2шт.

15

NLS

NO LONGER SERVICED

lower, D14955 kit for mounting D30953 frame

2шт.

16

D25279

SNAP RING,M35, Int

retaining, D14955 kit for mounting D30953 frame

8шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease (1/8" NPT), D14955 kit for mounting D30953 frame

2шт.

18

D30953

pallet and logging fork (Used with snap ring type retaining pins)

1шт.

D48013

pallet and logging fork (Used with bolt type retaining pins) Service with D30953 frame and D14955 pin kit

1шт.

19

D21656

SHAFT

fork mounting, logging

1шт.

20

132-152

PIN

cotter, 1/4" dia. x 1-3/4", pallet and logging forks

2шт.

21

D21575

FORK TEDDER

pallet (When stock is exhausted, use D47999 fork), logging

2шт.

21

D47999

FORK

pallet and logging forks

2шт.

22

D40464

FORK

logging, R.H. (When stock is exhausted, order 1-D43124 logging fork for service), pallet

1шт.

23

D40465

X

FORK - logging, L.H. (When stock is exhausted, order 1-D43124 logging fork for service), pallet

1шт.

24

D43124

FORK TEDDER

logging, pallet

2шт.
