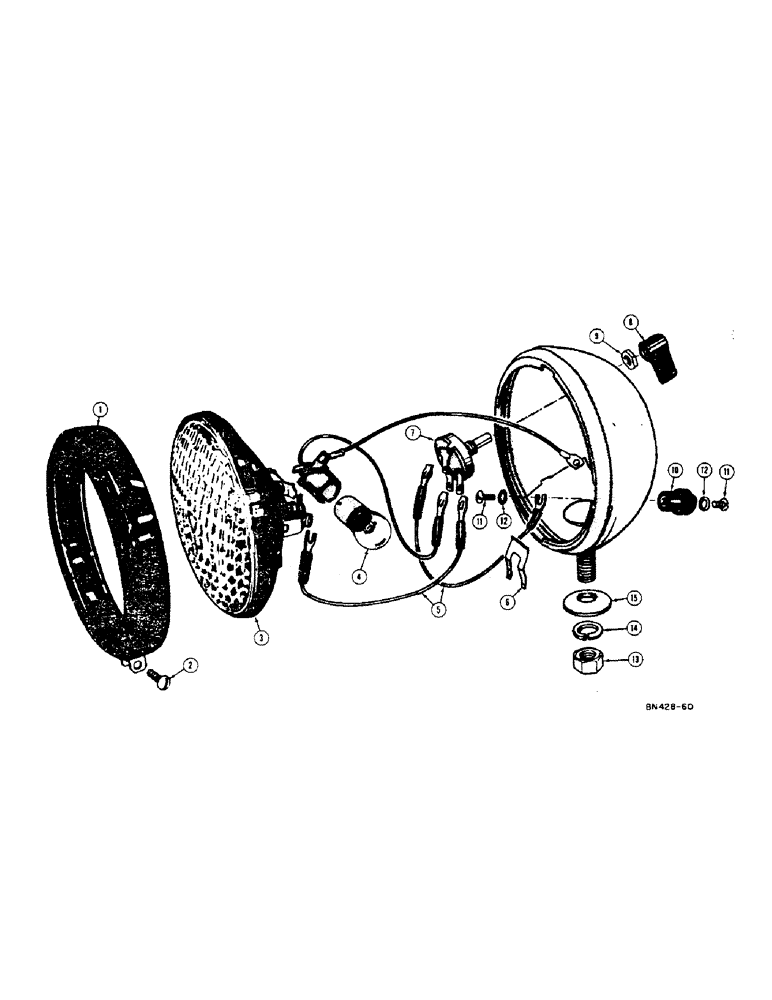

Запчасти Case 32 (142) - FLOOD AND TAIL LAMP

A20965

LAMP BASE

LAMP - flood and tail, Includes: Ref. 1 - 15

1шт.

1

B50255

MOLDING

1шт.

2

B50230

SCREW - molding

1шт.

3

B50335

SEALED UNIT

1шт.

4

B50223

BULB

- no. 1003

1шт.

5

B50273

WIRE

2шт.

6

B50269

SPRING - terminal

1шт.

7

B50275

SWITCH

1шт.

8

B50310

SWITCH

KNOB - switch

1шт.

9

B50224

SPECIAL NUT

- retaining, switch

1шт.

10

B50293

TERMINAL CONNECTOR

TERMINAL

1шт.

11

B50212

X

SCREW - terminal

2шт.

12

B50216

X

WASHER - lock, term. screw

2шт.

13

B50210

X

NUT - molding

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

B50231

X

WASHER - bearing, mounting stud

1шт.
