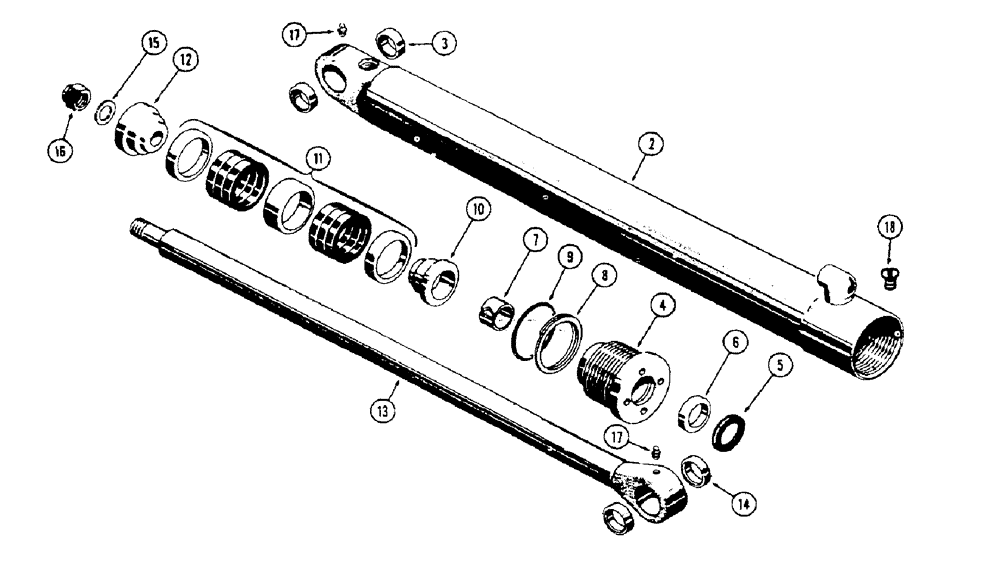

Запчасти Case 32 (139C) - G32598 BUCKET CYLINDER, 3-1/2" I.D. X 27-1/4" STROKE

G32598

HYDRAULIC CYLINDER

CYLINDER - bucket (Replaces D30769), Includes: Ref. 2 - 18

1шт.

2

D27766

CYLINDER BLOCK

TUBE, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

4

G32743

GLAND

packing, Includes: Ref. 5 - 9

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of cylinder packing kit P/N G32291

1шт.

6

D36970

CUP

SEAL - rod

1шт.

Part of cylinder packing kit P/N G32291

1шт.

7

D27432

SHIM

rod, inner

1шт.

Part of cylinder packing kit P/N G32291

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

"O" ring back-up

1шт.

Part of cylinder packing kit P/N G32291

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N G32291

1шт.

10

D28369

PISTON

rod end half

1шт.

11

G33237

PACKING

piston

1шт.

Part of cylinder packing kit P/N G32291

1шт.

12

D28367

PISTON

nut end half

1шт.

13

D27885

ROD

piston, 1-3/4" dia., Includes: Ref. 14

1шт.

14

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

rod

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

rod nut

1шт.

16

131-19

LOCK NUT,1"-14, GB

1" N.F. hex., lock

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

18

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

G32291

CYLINDER

KIT - packing, Includes Refs. 5 - 9 and 11

1шт.
