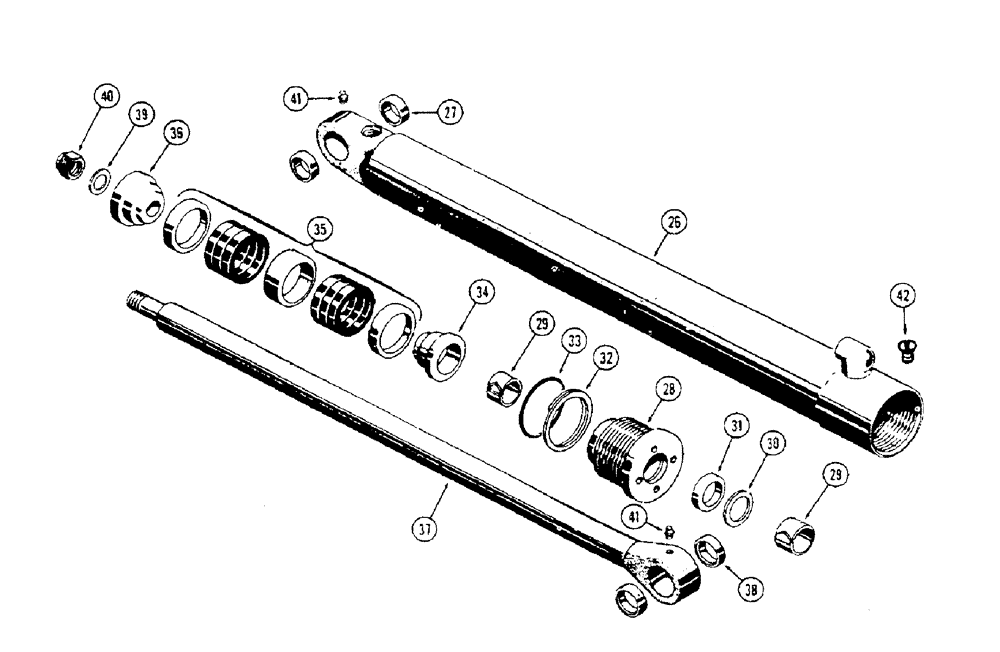

Запчасти Case 32 (139C[1]) - D30769 BUCKET CYLINDER 3-1/2" I.D. X 27-1/4" STROKE

D30769

HYDRAULIC CYLINDER

bucket (Order G32598), Includes: Ref. 26 - 42

1шт.

26

D27766

CYLINDER BLOCK

TUBE, Includes: Ref. 27

1шт.

27

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

28

D45069

GLAND

packing

1шт.

29

D27432

SHIM

rod, inner & outer

2шт.

Part of cylinder packing kit P/N D37356

1шт.

30

D28499

RING

back-up

1шт.

Part of cylinder packing kit P/N D37356

1шт.

31

D36970

CUP

SEAL - rod

1шт.

Part of cylinder packing kit P/N D37356

1шт.

32

D36094

WASHER

RING - "O" ring back-up

1шт.

Part of cylinder packing kit P/N D37356

1шт.

33

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N D37356

1шт.

34

D28369

PISTON

rod end half

1шт.

35

D36963

PACKING

piston

1шт.

Part of cylinder packing kit P/N D37356

1шт.

36

D28367

PISTON

nut end half

1шт.

37

D27885

ROD

piston, 1-3/4" dia., Includes: Ref. 38

1шт.

38

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

rod

1шт.

39

D95032

WASHER

rod nut

1шт.

40

131-19

LOCK NUT,1"-14, GB

1" N.F. hex., lock

1шт.

41

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

42

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

D37356

GLAND

KIT - cylinder packing, Includes Refs. 29 - 33 and 35

1шт.
