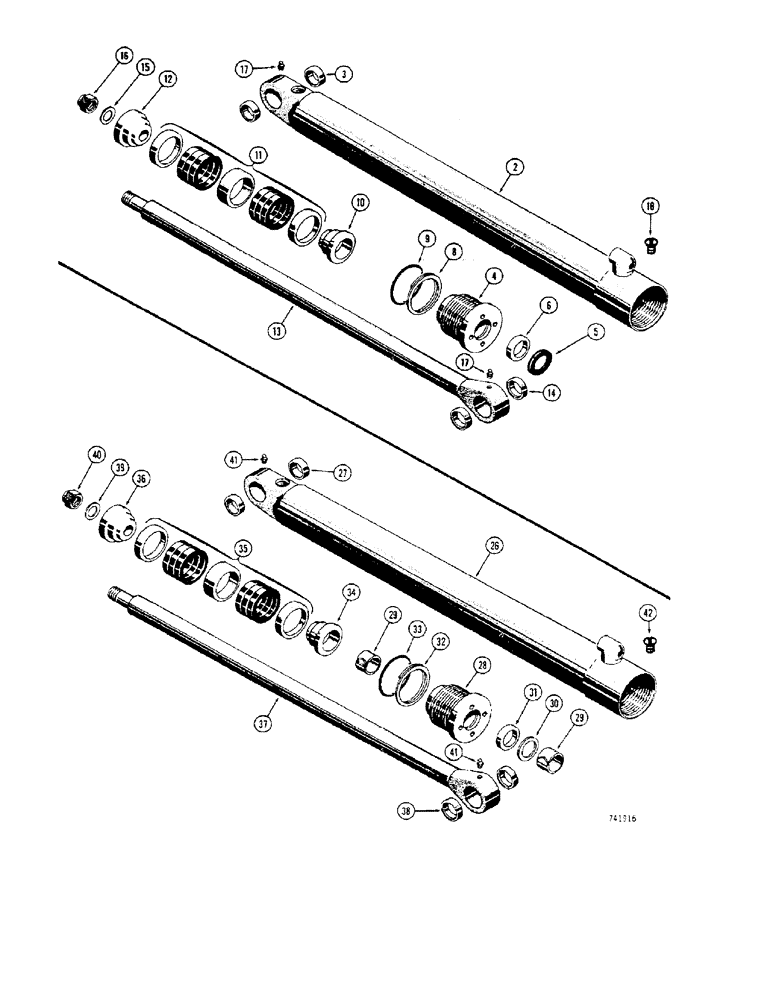

Запчасти Case 32 (139A) - G32619 CROWD CYLINDER, 4" I.D. X 32" STROKE

G32619

CYLINDER

crowd (Replaces D27752), Includes: Ref. 2 - 18

1шт.

2

D27769

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

4

G32800

GLAND

packing, Includes: Ref. 5 - 9

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer

1шт.

Part of cylinder packing kit P/N G32614

1шт.

6

D36971

RING

SEAL - rod

1шт.

Part of cylinder packing kit P/N G32614

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

"O"

1шт.

Part of cylinder packing kit P/N G32614

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N G32614

1шт.

10

D28371

PISTON

rod end

1шт.

11

G33239

PACKING

piston

1шт.

Part of cylinder packing kit P/N G32614

1шт.

12

D28370

PISTON

bolt end

1шт.

13

D27763

YOKE

ROD - piston 2" dia.

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

rod

2шт.

15

G32351

WASHER

rod nut

1шт.

16

131-222

NUT - 1-1/4" N.F. hex., lock

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

18

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

G32614

SEAL KIT

KIT - cylinder packing, Includes Refs. 5, 6, 8, 9 and 11

1шт.

D27752

CYLINDER ASSY.

crowd (Order G32619), Includes: Ref. 26 - 42

1шт.

26

D27769

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 27

1шт.

27

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

28

D45071

GLAND

packing

1шт.

29

D27380

SCRAPER RING

WIPER - rod, inner & outer

2шт.

Part of cylinder packing kit P/N D42876

1шт.

30

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

back-up

1шт.

Part of cylinder packing kit P/N D42876

1шт.

31

D36971

RING

SEAL - rod

1шт.

Part of cylinder packing kit P/N D42876

1шт.

32

D36095

BACK-UP RING

"O" back-up

1шт.

Part of cylinder packing kit P/N D42876

1шт.

33

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N D42876

1шт.

34

D46424

PISTON

rod end

1шт.

35

D36964

PACKING

piston

1шт.

Part of cylinder packing kit P/N D42876

1шт.

36

D46930

PISTON

bolt end

1шт.

37

D27763

YOKE

ROD - piston, 2" dia., Includes: Ref. 38

1шт.

38

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

rod

2шт.

39

D95033

WASHER

rod nut

1шт.

40

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

42

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

D37358

GLAND

KIT - cylinder packing, Includes Refs. 29 - 33

1шт.
