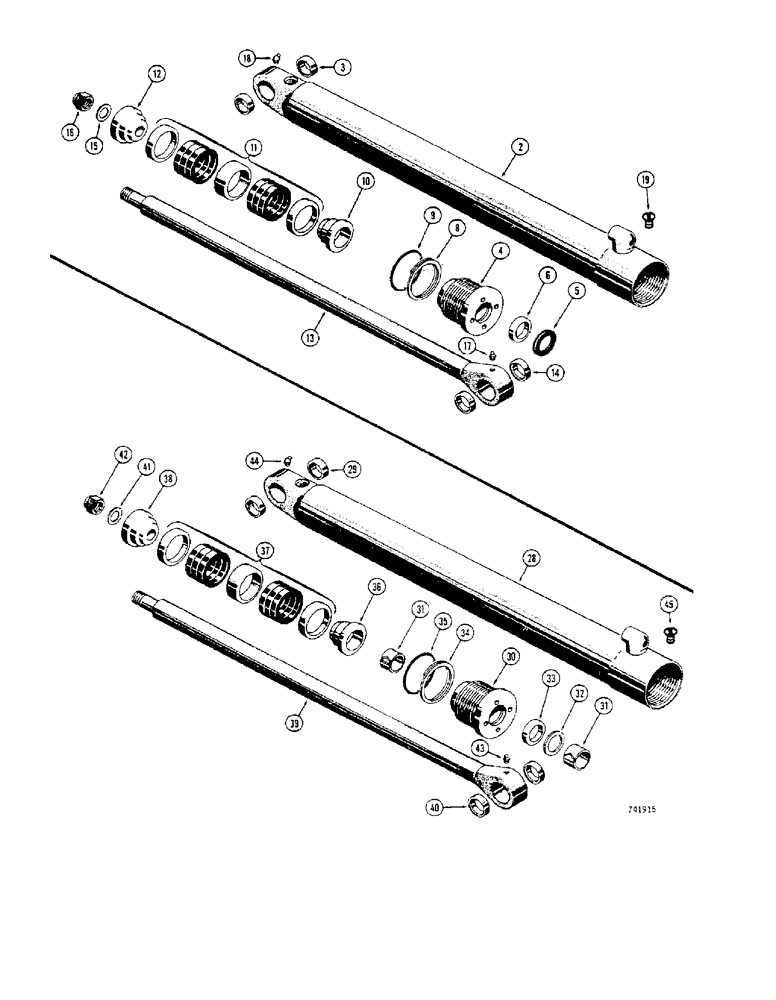

Запчасти Case 32 (138) - G32606 & G32607 BOOM CYLINDERS, 4" I.D. X 39-3/16" STROKE

G32606

CYLINDER BLOCK

boom (Replaces D35435), Includes: Ref. 2 - 19

1шт.

G32607

CYLINDER

boom (Replaces D27751), Includes: Ref. 2 - 19

1шт.

2

D35434

TUBE

cylinder (G32606 cylinder), Includes: Ref. 3

1шт.

3

D27768

cylinder (G32607 cylinder), Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

4

G32800

GLAND

packing, Includes: Ref. 5 - 9

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer

1шт.

Part of cylinder packing kit P/N G32616

1шт.

6

D36971

RING

SEAL - rod

1шт.

Part of cylinder packing kit P/N G32616

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

"O"

1шт.

Part of cylinder packing kit P/N G32616

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N G32616

1шт.

10

D28371

PISTON

rod end half

1шт.

11

D36964

PACKING

piston

1шт.

Part of cylinder packing kit P/N G32616

1шт.

12

D28370

PISTON

- nut end half

1шт.

13

D27662

ROD - piston, 2" dia., Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

rod

2шт.

15

G32351

WASHER

rod nut

1шт.

16

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

19

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

G32616

CYLINDER

KIT - cylinder packing, Includes Refs. 5, 6, 8, 9 and 11

1шт.

D35435

CYLINDER

order G32606) (1st used backhoe ser. #4101401), Includes: Ref. 28 - 45

1шт.

D27751

CYLINDER ASSY.

(Order G32607) (Used prior to backhoe ser. #4101401) stroke, Includes: Ref. 28 - 45

1шт.

28

D35434

TUBE

cylinder (D35435 cylinder), Includes: Ref. 29

1шт.

28

D27768

cylinder (D27751 cylinder), Includes: Ref. 29

1шт.

29

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

tube

2шт.

30

D45071

GLAND

packing

1шт.

31

D27380

SCRAPER RING

WIPER - rod, inner & outer

2шт.

Part of cylinder packing kit P/N D42876

1шт.

32

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

back-up

1шт.

Part of cylinder packing kit P/N D42876

1шт.

33

D36971

RING

SEAL - rod

1шт.

Part of cylinder packing kit P/N D42876

1шт.

34

D36095

BACK-UP RING

"O" ring back-up

1шт.

Part of cylinder packing kit P/N D42876

1шт.

35

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N D42876

1шт.

36

D46424

PISTON

rod end half

1шт.

37

D36964

PACKING

piston

1шт.

38

D46930

PISTON

nut end half

1шт.

39

D27762

YOKE

ROD - piston, 2" dia., Includes: Ref. 40

1шт.

40

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

rod

2шт.

41

D95033

WASHER

rod nut

1шт.

42

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

45

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

D42876

GLAND

KIT - cylinder packing, Includes Refs. 31, 32, 33, 34, 35

1шт.
