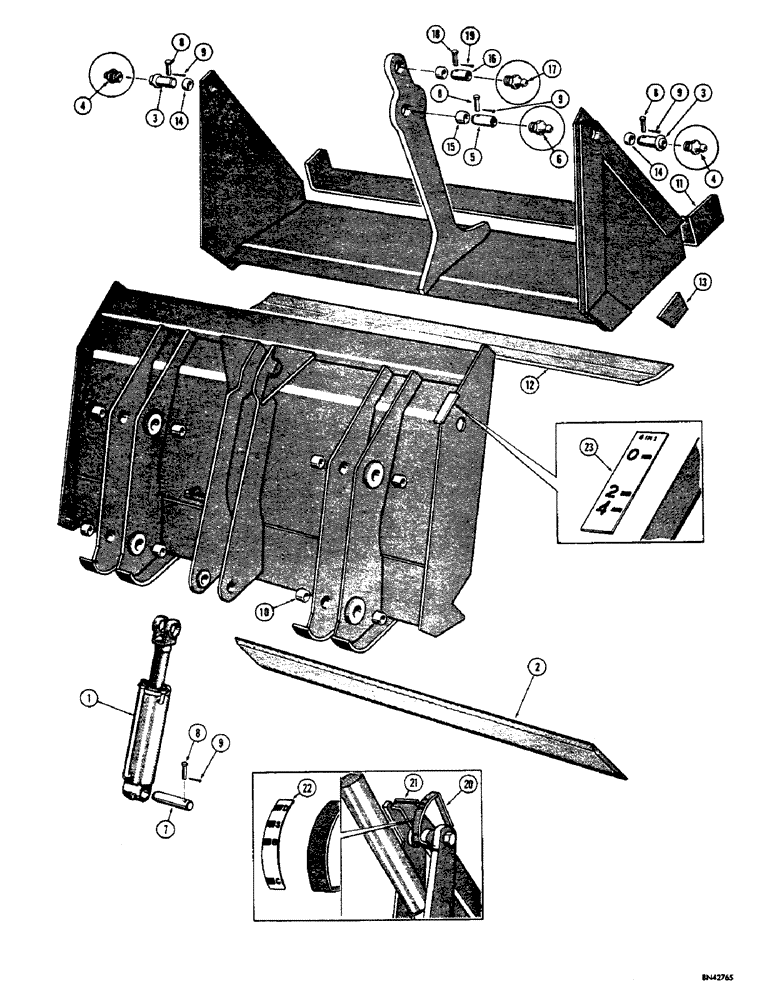

Запчасти Case 32 (010) - DROTT 4-IN-1 BUCKET

D34409

BUCKET - multi-purpose, Drott, Includes: Ref. 1 - 23

1шт.

1

D38367

CYLINDER BLOCK

CYLINDER - clam (3-1/2" I.D. x 8.10" stroke) Parts list Figure 68[1]

1шт.

D38600

BLADE ASSEMBLY, Includes: Ref. 2 - 10

1шт.

2

D35636

EDGE

CUTTING EDGE - blade assembly

1шт.

3

D38595

PIN ASSY.

PIN - blade to clam (Outer), Includes: Ref. 4

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grs., str. (1/8" NPT)

1шт.

5

D38594

PIN ASSY.

PIN - blade to clam (Center), Includes: Ref. 6

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grs., str. (1/8" NPT)

1шт.

7

D38593

PIN

- cyl., Serial Range: base-blade

1шт.

8

A18664

CLEVIS PIN

PIN - clevis (3/8" x 2-1/8")

4шт.

9

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

10

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket hinge

8шт.

D38592

CLAM ASSEMBLY, Includes: Ref. 11 - 19

1шт.

11

D38597

CUTTING EDGE - clam, front

1шт.

12

D38598

EDGE

CUTTING EDGE - clam, rear

1шт.

13

D38599

HOOK - grab

2шт.

14

D35633

BUSHING

- outer

2шт.

15

D35634

BUSHING

- center

2шт.

16

D38596

PIN ASSY.

PIN - clam to cyl., Includes: Ref. 17

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grs. str. (1/8" NPT)

1шт.

18

D35649

X

PIN - clevis (3/8" x 2-1/8")

1шт.

19

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

D34458

LARGE PLATE

PLATE - indicator

1шт.

21

D34456

POINTER - indicator

1шт.

22

D36818

DECAL - bucket position

1шт.

23

D36817

DECAL

- clam position

1шт.
