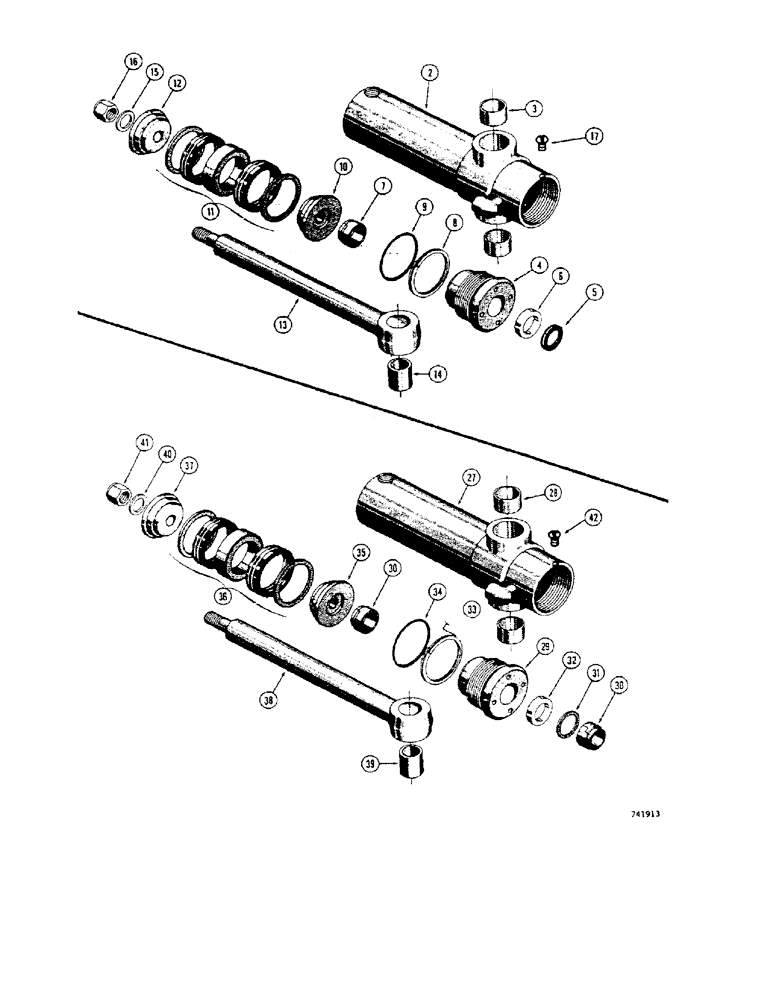

Запчасти Case 32 (137C) - G32608 AND G32609 SWING CYLINDERS, 4" I.D. X 11" STROKE

G32609

CYLINDER BLOCK

ASSY. - swing, L.H. (Replaces D30746), Includes: Ref. 2 - 17

1шт.

G32608

CYLINDER

swing, R.H. (Replaces D30745), Includes: Ref. 2 - 17

1шт.

2

D30738

TUBE

cylinder, L.H., Includes: Ref. 3

1шт.

2

D30737

cylinder, R.H., Includes: Ref. 3

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

tube

2шт.

4

G32738

GLAND

packing, Includes: Ref. 5 - 9

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of cylinder packing kit P/N G32617

1шт.

6

D36970

CUP

SEAL - rod

1шт.

Part of cylinder packing kit P/N G32617

1шт.

7

D27432

SHIM

rod, inner

1шт.

Part of cylinder packing kit P/N G32617

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

"O"

1шт.

Part of cylinder packing kit P/N G32617

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N G32617

1шт.

10

D30743

PISTON

rod end half

1шт.

11

D36964

PACKING

piston

1шт.

Part of cylinder packing kit P/N G32617

1шт.

12

D30744

PISTON

nut end half

1шт.

13

D30842

ROD

piston, 1-3/4" dia., Includes: Ref. 14

1шт.

14

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

rod

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

rod nut

1шт.

16

131-19

LOCK NUT,1"-14, GB

1" N.F. hex., lock

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd. self-tapping

1шт.

G32617

SEAL

KIT - cylinder packing, Includes Refs. 5 - 9 and 11

1шт.

D30745

CYLINDER

swing, R.H. (Order G32608), Includes: Ref. 27 - 42

1шт.

D30746

CYLINDER

swing, L.H. (Order G32609), Includes: Ref. 27 - 42

1шт.

27

D30737

R.H., Includes: Ref. 28

1шт.

27

D30738

TUBE

L.H., Includes: Ref. 28

1шт.

28

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

tube

2шт.

29

D45072

GLAND

- packing

1шт.

30

D27432

SHIM

rod, inner & outer

2шт.

Part of cylinder packing kit P/N D37359

1шт.

31

D28499

RING

back-up, rod seal

1шт.

Part of cylinder packing kit P/N D37359

1шт.

32

D36970

CUP

SEAL - rod

1шт.

Part of cylinder packing kit P/N D37359

1шт.

33

D36095

BACK-UP RING

"O" ring back-up

1шт.

Part of cylinder packing kit P/N D37359

1шт.

34

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland seal

1шт.

Part of cylinder packing kit P/N D37359

1шт.

35

D49159

rod end half

1шт.

36

D36964

PACKING

piston

1шт.

Part of cylinder packing kit P/N D37359

1шт.

37

D49162

PISTON

nut end

1шт.

38

D30842

ROD

piston, 1-3/4" dia., Includes: Ref. 39

1шт.

39

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

piston rod

1шт.

40

D95032

WASHER

rod nut

1шт.

41

131-19

LOCK NUT,1"-14, GB

1" N.F. hex., lock

1шт.

42

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

D37359

SEAL KIT

KIT - cylinder packing, Includes Refs. 30 - 34 and 36

1шт.
