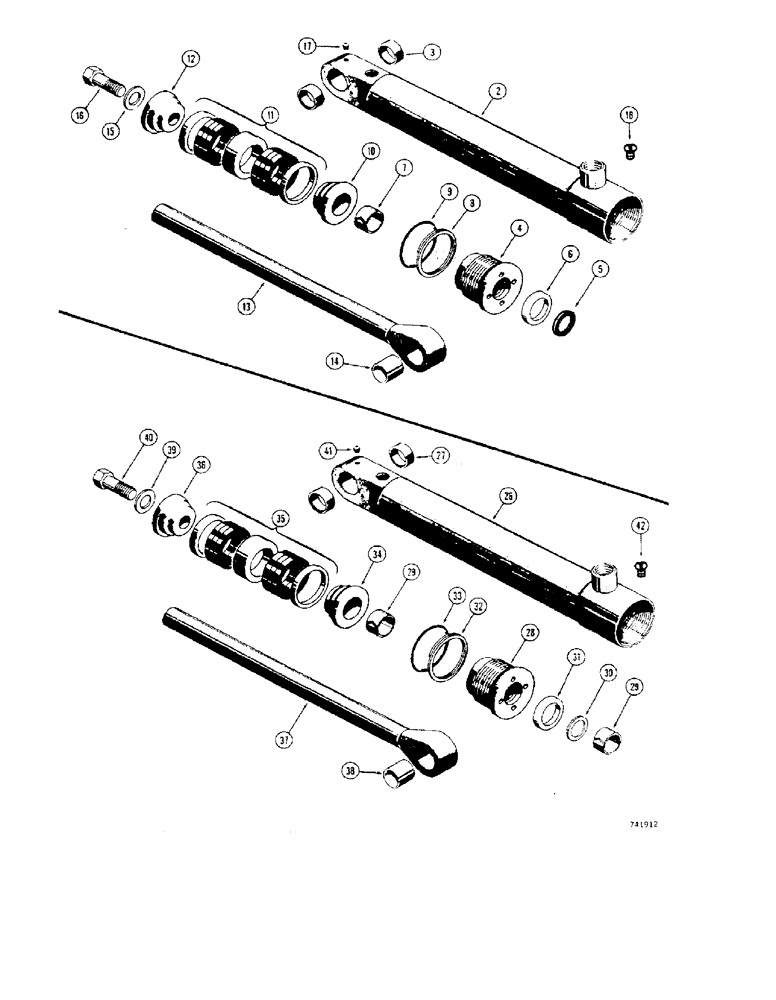

Запчасти Case 32 (137A) - G32173 STABILIZER CYLNDER, 3-1/2" I.D. X 16-3/8" STROKE

G32173

CYLINDER

stabilizer, 11-1/2" stroke (Replaces D35683), Includes: Ref. 2 - 18

1шт.

2

D36680

TUBE

cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

4

G32743

GLAND

packing, Includes: Ref. 5 - 9

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

6

D36970

CUP

SEAL - rod

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

7

D27432

SHIM

rod, inner

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

"O" ring back-up

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland seal

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

10

D28369

PISTON

rod end half

1шт.

11

D46452

X

PACKING - piston seal

1шт.

Part of Cylinder Packing Kit, P/N G32298

1шт.

12

D38367

CYLINDER BLOCK

PISTON - bolt end half

1шт.

13

D36684

ROD ASSY.

piston, 1-3/4" dia., Includes: Ref. 14

1шт.

14

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

rod

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

rod nut

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

18

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

G32298

SEAL

KIT - cylinder packing Includes Refs. 5 - 9 and 11

1шт.

D35683

CYLINDER ASSY.

stabilizer, 11-1/2" stroke, Includes: Ref. 26 - 42

1шт.

26

D36680

TUBE

Includes: Ref. 27

1шт.

27

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

28

D45069

GLAND

packing

1шт.

29

D27432

SHIM

rod, inner & outer

2шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

30

D28499

RING

back-up

1шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

31

D36970

CUP

SEAL - rod

1шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

32

D36094

WASHER

RING - "O" ring back-up

1шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

33

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland seal

1шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

34

D28369

PISTON

rod end half

1шт.

35

D36963

PACKING

piston seal

1шт.

Part of Cylinder Packing Kit, P/N D37356

1шт.

36

D28367

PISTON

bolt end half

1шт.

37

D36684

ROD ASSY.

piston, 1-3/4" dia., Includes: Ref. 38

1шт.

38

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

rod

1шт.

39

D95032

WASHER

rod nut

1шт.

40

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

42

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

#8-32 x 1/4" sltd., self-tapping

1шт.

D37356

GLAND

KIT - cylinder packing Includes Refs. 29 - 33 and 35

1шт.
